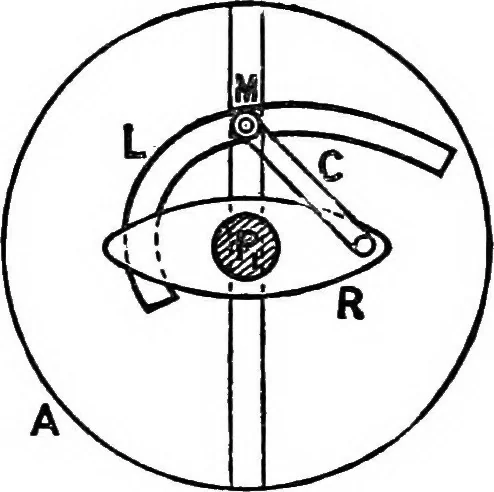

weenR and A may be varied according to requirement, being less thegreater the helm angle (see § 152). In practice the pin M is attached to a block which slides inthe transverse slot, and also turns in an upper block which slidesia the groove L. Moreover, the connecting-rod is not attacheddirectly… … Fig. 414. 372 MECHANISM. then cause it to return to its initial position. The guides andconnecting-rods are made in duplicate. The pressure exerted bythe blocks on the groove is almost normal, so that any shockdue to wave-action is not transmitted to the gearing. Furtherparticulars will be found in…
