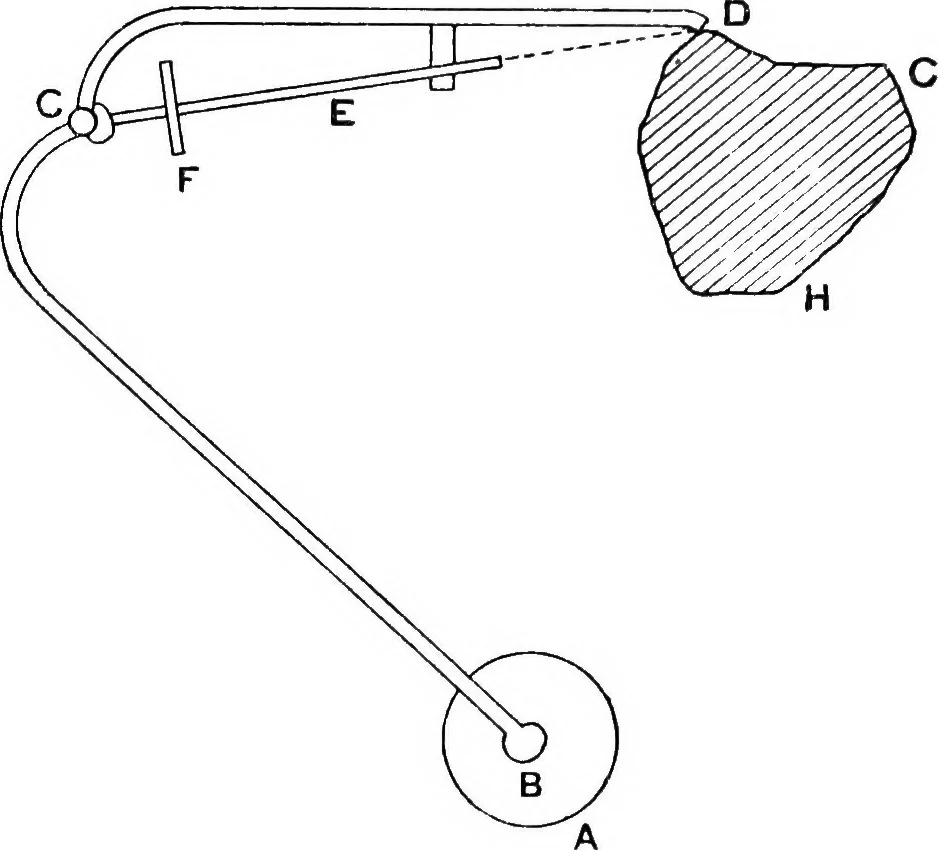

= MECHANISMarea of figure CD area of figure = CD X distance rolled by the wheel F, where CD is a measured constant length. The distance rolled bythe wheel is measured by a graduated circle and vernier at one sideof the wheel, the number of complete revolutions being recorded … This Fio. 420. by another wheel driven by an endless screw on the shaft,wheel and screw are omitted in the sketch. In Fig. 421, BCD is on^ position of planimeter.Suppose the roller is placed at, say K, and denote CK by h.Let the consecutive positions of the mechanism be BCD BCDCall the arc CC, ds,…
