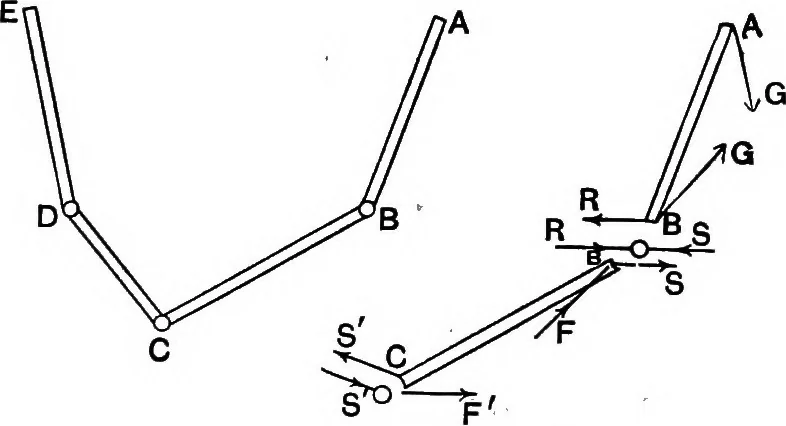

B 1 C f D I E I F 1. Fig. 150. We find the forces on the pins in the order 1, 2, 3,4, 5 asindicated in the figure. The forces NP, PC, CD at thepin 5 are represented by np, pc and cd; in order to getthe force MN-vfe have to draw through d a line drni parallelto DM and through n a line nm parallel to… … Fio. 151. In the present Article we shall discuss the equilibriumof a system of bars connected by smooth joints or pins; inthe figure, for instance, we have four such jointed bars, on 15—2 228 THE ELEMENTS OP APPLIED MATHEMATICS. the right the bars are drawn separated from the joints toshow more…
