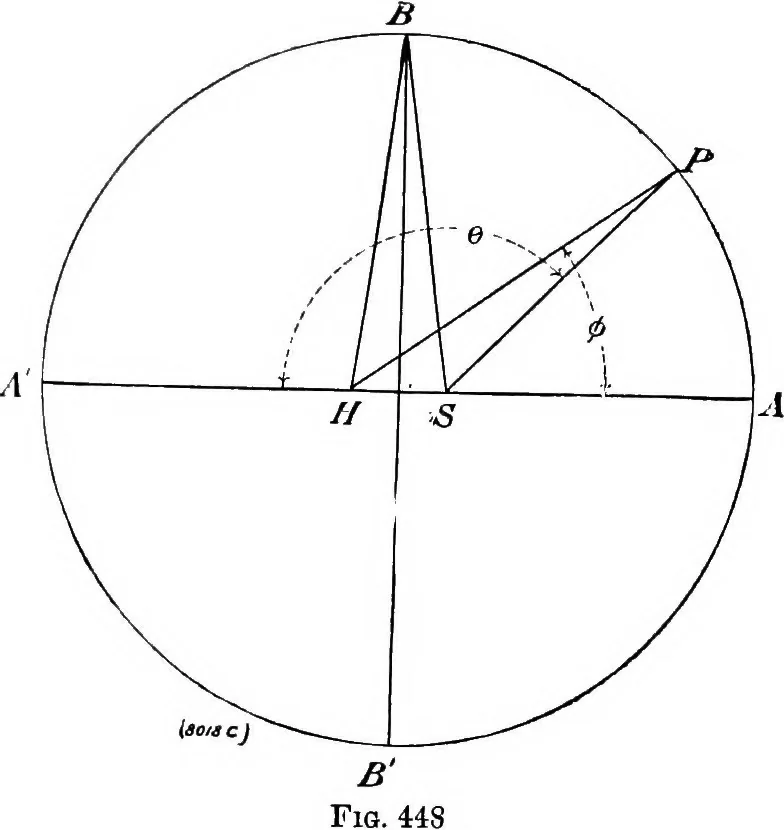

ngles of inclination of focal radii SP, HP to the major axis, have thesame relation as the angles of the mechanism (Fig. 448). Thusif SP be made to revolve in imitation of any movement given to GRAPHIC SOLUTION OF CO-ORDINA TED MOVEMENTS. 409 the driver crank, HP will exactly imitate the movemeut… … is in these positions that the angular velocity ratio differs most from unity, being equal to — ( = ^^1 when P is at A, and HA\ 1 + e/ SAV 1 + e\ ,( = ) when P is at A, When the point P is at either HA\ 1-6/ end of the minor axis BB, the mechanism is in what may be called one of its two symmetric…
