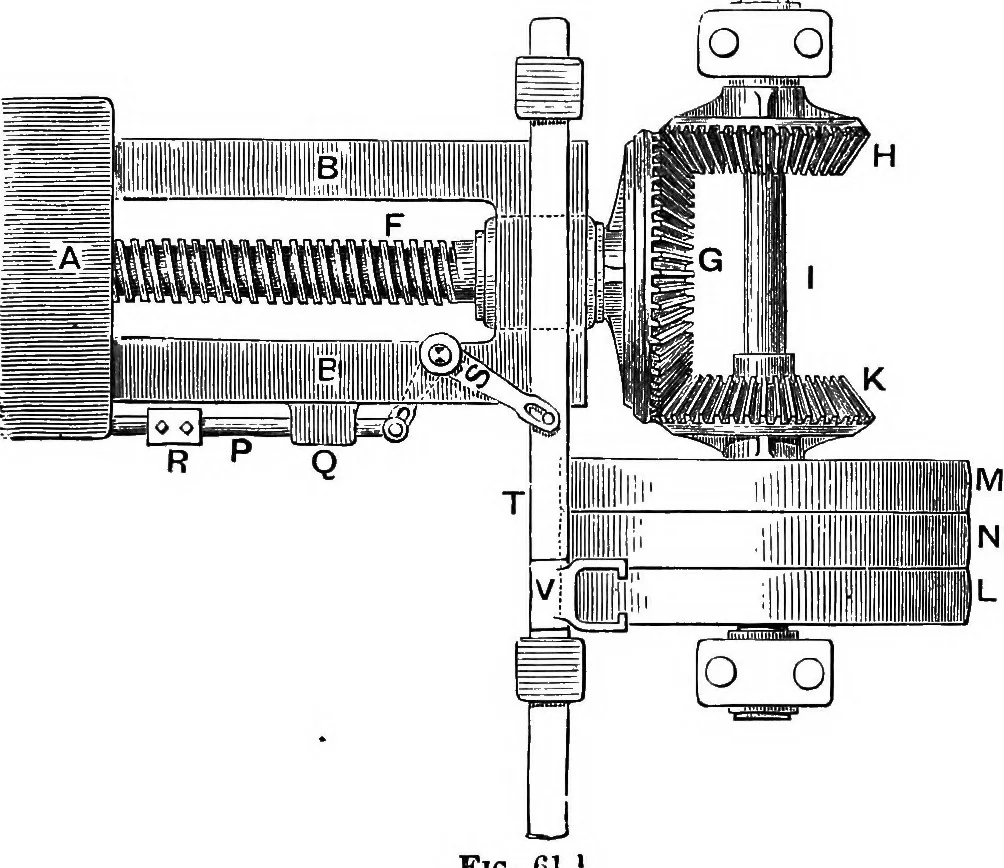

D MACHINE TOOLS, ETC. 49 to give a quick return. There are vai-ious ways of obtaining thereciprocating motion and quick return of the table; a few of thecommoner arrangements may be noticed. § 43. Beturn Motion obtained by Gearing^. Shipper Mechanism.—In machines for light work, the reciprocating… … Fig. 61, from iioving axially by flanges. The arrangement, in plan, isshown in Pig. 61, in which A represents the plane table, B, Bthe parallel V-grooves, and F the screw. At the extremity ofF is keyed a bevel wheel, G, which gears with two equal bevelwheels, H and K, at opposite sides of the…
