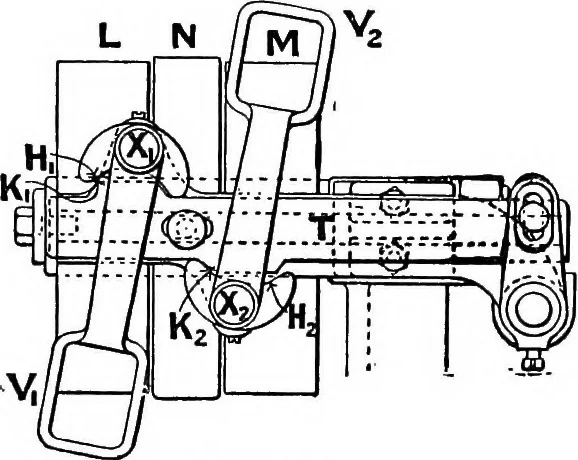

hrough Vi, and the crossed belt through V2,the guides being placed on opposite sides of the sliding piece, sothat the guides, in each case, press on the advancing side of thebelt. Each shipper is provided, at the pivot end. with a pair ofrounded lugs, projections, or cams, Hj and Hg; and the… … *PiG. 62. MECHANISM. but if the plate T move to the left, the projection K2 strikesagainst the left lug of the cam Ha of the shipper V2, and moves iton to the fast pulley N; whilst at the same time the projection Kimoves opposite to the left lug of the cam Hi, and effectually locksVi in the off…
