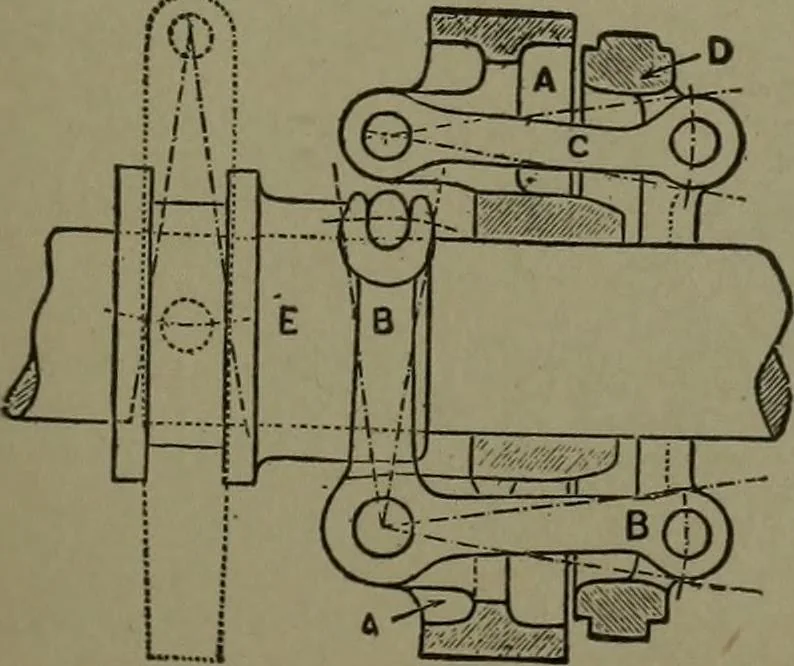

848. ROAD ROLLER.—Steam-driven. One of the heavy classnow improving our roads. 849. SINGLE ECCENTRIC RE-VERSING GEAR.—Used on tractionengines. A is a wheel keyed on thecrank shaft; D is the eccentric; C, alink; B, B, bell crank, connected tosleeve and eccentric. The movementof the sleeve E by the…
