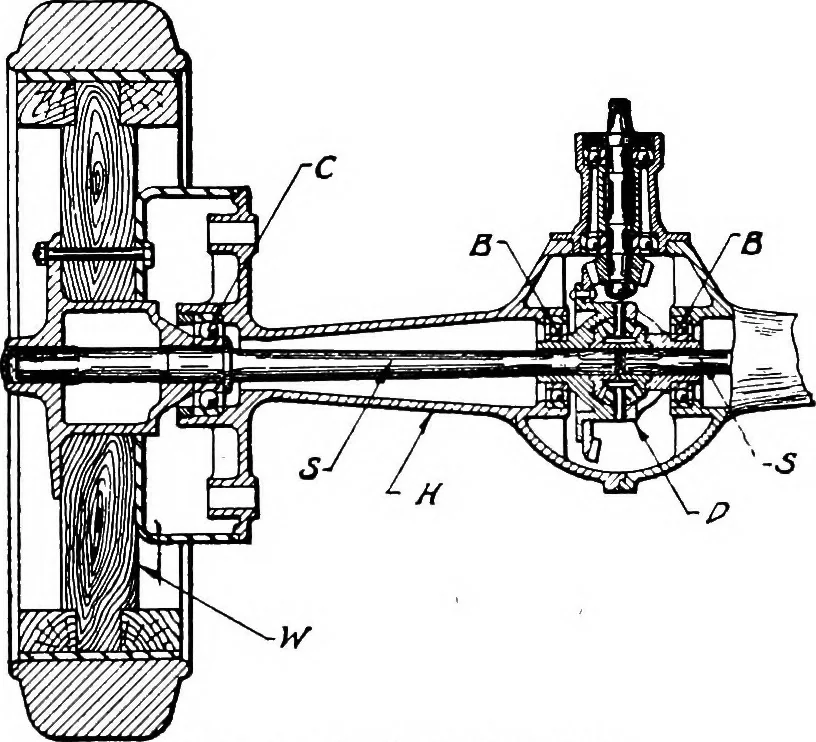

Plain Live Axle in the end of the housing, the load and wl)eel thrusts aretaken directly by the shafts. Semi-Floating Axles The semi-floating axles (Fig. 6) are the same as thelive axle except that the inner ends of the shafts arerelieved from all thrust load and simply transmit theturning force.… … Fig. 6—Semi-Floating Axle Thus the inner ends or halves of the driving shafts maybe said to be free or floating where attached to the differ-ential and hence semi-floating. Three-Quarter-Floating Axles In the three-quarter-floating axles (Fig. 7), the innerends of shafts (S) are secured in the…
