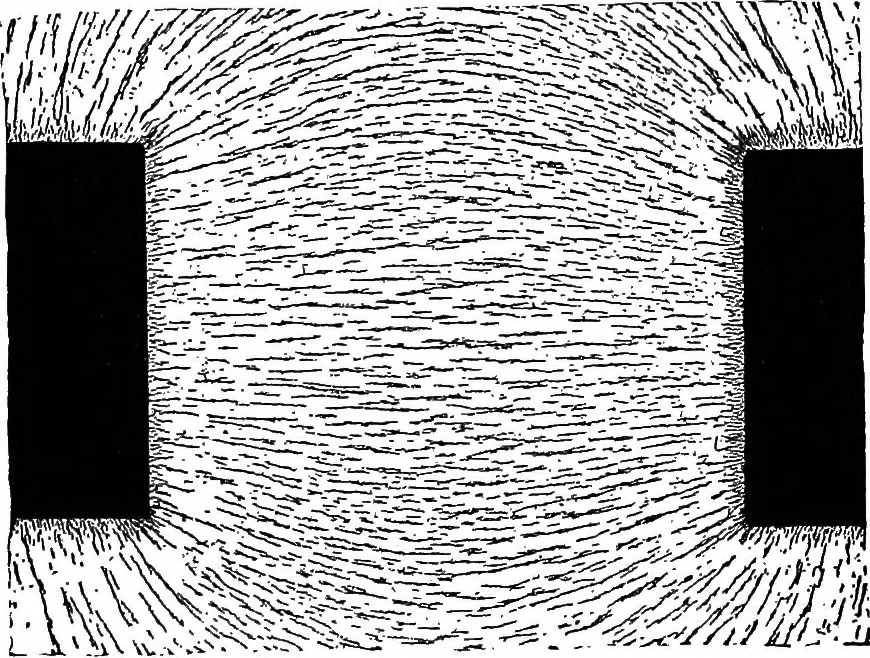

c p^j»current is flowing is a mag- \netic field. Figure 4 shows a ss*compass needle placed at apoint p near a large magnet.The dotted arrow shows thedirection of the magnetic fieldat p. Fig. 4. _, , , , , The dotted line shows the direction in. The poles of a magnet are which the small magnet at p… … Fig. 5a. Figure 5a is a photograph of the figure obtained by dustingiron filings on a pane of glass which is placed over two large * If the needle is perfectly balanced. ADVANCED ELECTRICITY AND MAGNETISM magnet poles, a north pole and a south pole, facing each othef.The filaments of iron filings…
