Experiments on the rate of heat transfer from a hot gas to a cooler metallic surface (1916)
Babcock & Wilcox Company · New York, The Babcock & Wilcox co · leaf 75

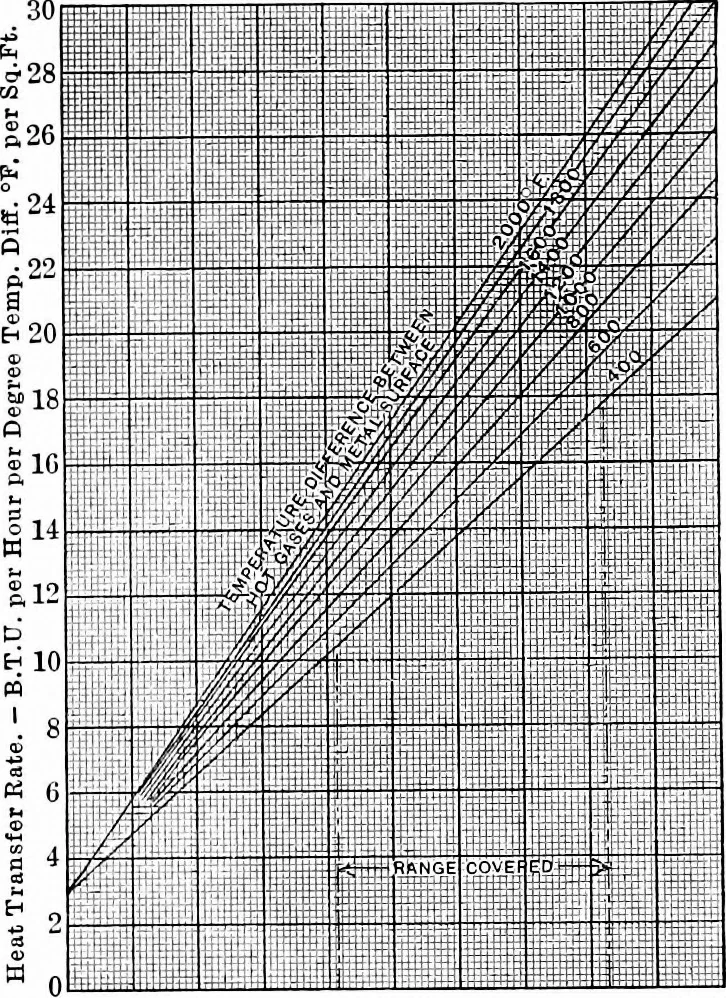

ER RATES FOR square foot of passage A 2-INCH INTERNAL DIAMETER TUBE , FITTED WITH 1-INCH EXTERNAL ^^ DIAMETER CORE This scnes of e.\- periments was con-ducted in exactly the same manner as those already describedand the computations were made in the same way. The resultsof this series are shown in… … 0 64 particular form of gas passage area used, namely, a 2-inch internaldiameter tube fitted with a one-inch outside diameter core. Itis not to be assumed, however, that the rates shown in thisfigure would hold for an uncored tube of a transverse sectionalarea equivalent to that of the annular…
Heat
