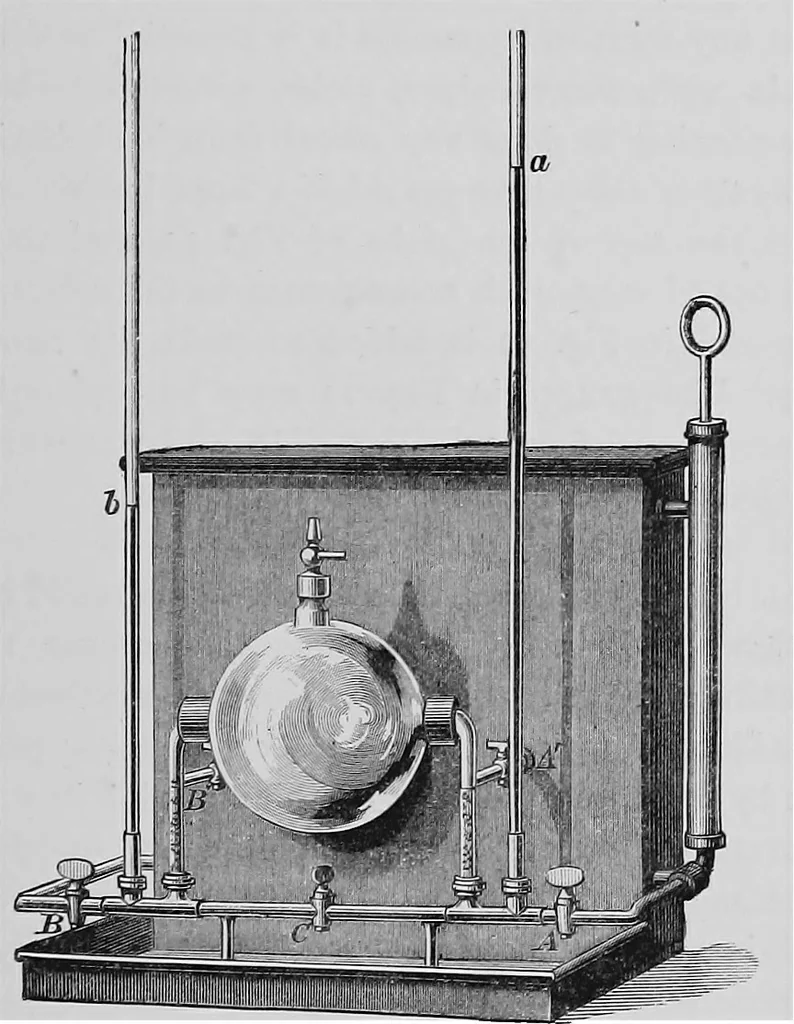

ffect the desiredearth-connections when wished. jThe gauges a and h represent electroscopesconnected to inner and outer coats of the jar respectively. Figs. II and 12 are taken from photographs ofapparatus I have made to use as just described. Theglass globe with the partially distended bag inside… … Fig. 12.—Latest form of hydraulic model of a Leyden jar with water gauges ; thewhole arranged vertically to be more conspicuous. The pump is a force-pumpwith a communication between top of barrel and tank to get rid of stray water.The parts are labelled to correspond with the skeleton diagram, Fig.…
