Poynting, J. H. (John Henry), 1852-1914, Shakespear, Gilbert Arden, ed, Barlow, Guy, joint ed · Cambridge, University Press · leaf 188

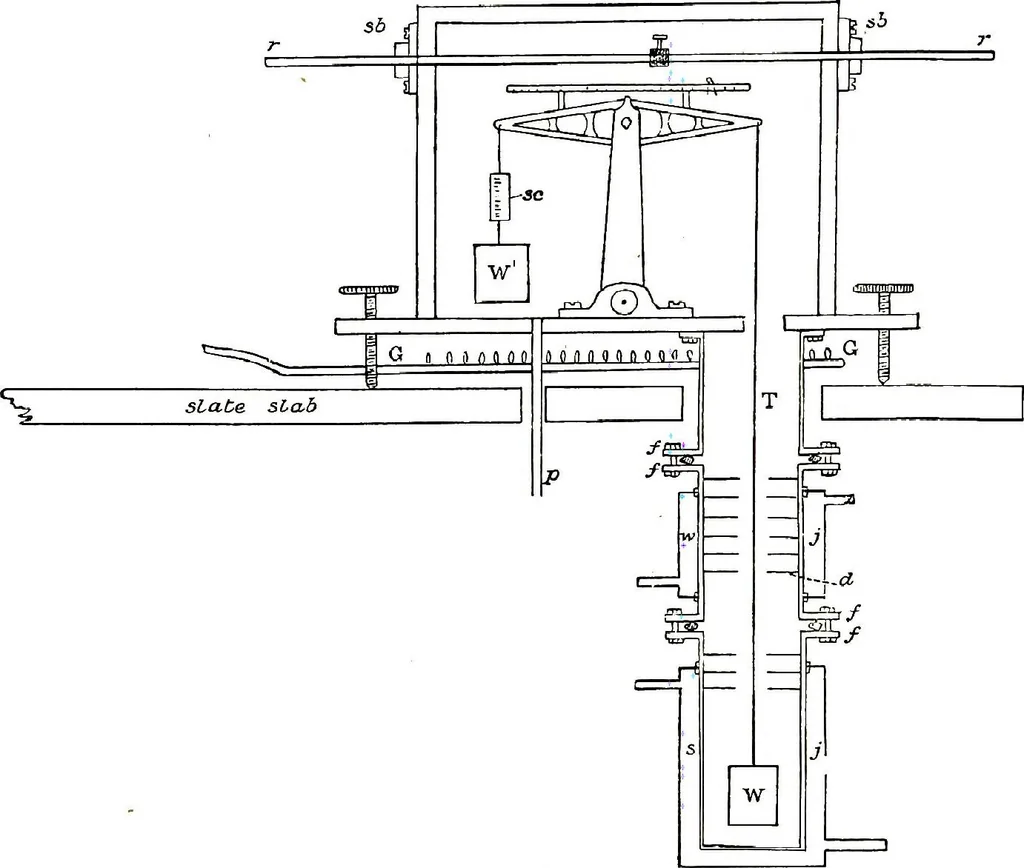

circularlead washer of diamond-shaped section. When the flanges were pressedtogether by bolts the joint was quite air-tight. Bound the middle section of 152 AN EXPERIMENT WITH THE BALANCE TO FIND IF the tube was a water-jacket wj througli which water flowed while an experi-ment was in progress, and… … Fig. 1. W, weight of which the temperature ia to be raised, W counterpoise. , T, tube in which it hange, with a number of diaphragms with J-inoh holes. sj, steam-jacket, replaced by Uquid-air jacket. ff, flanged joint with lead washer.wj, water-jacket. p, pipe to the exhausting pump. sc, scale read…
