Poynting, J. H. (John Henry), 1852-1914, Shakespear, Gilbert Arden, ed, Barlow, Guy, joint ed · Cambridge, University Press · leaf 244

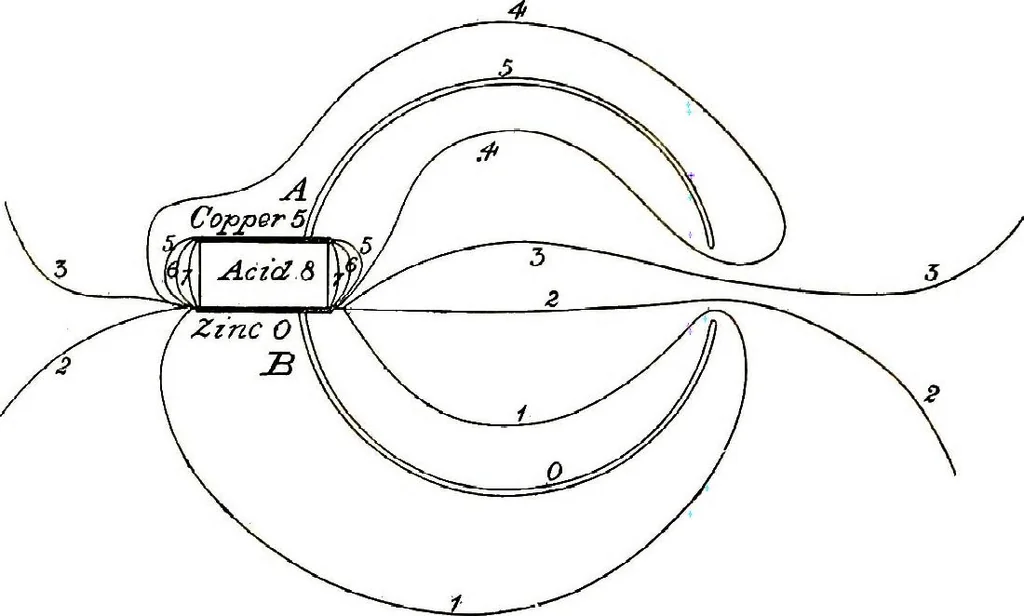

hydrogen. There is probably, then, inductionbetween the acid and the zinc, and between the acid and the copper, theseresembling the spaces between the plates of two condensers, the acid beingat a higher potential than either. But if a given amount of induction dis-appears from the zinc-acid contact… … Fig. 3. is greater than V. Then more than V - I level surfaces pass between thezinc and the acid, the excess over V — 1 going round and passing betweenthe copper and the acid, somewhat as in Fig. 3, where A, 5 are the metalplates. The surfaces are roughly sketched and numbered, on the…
Poynting, J. H. (John Henry), 1852-1914 · Physics
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
