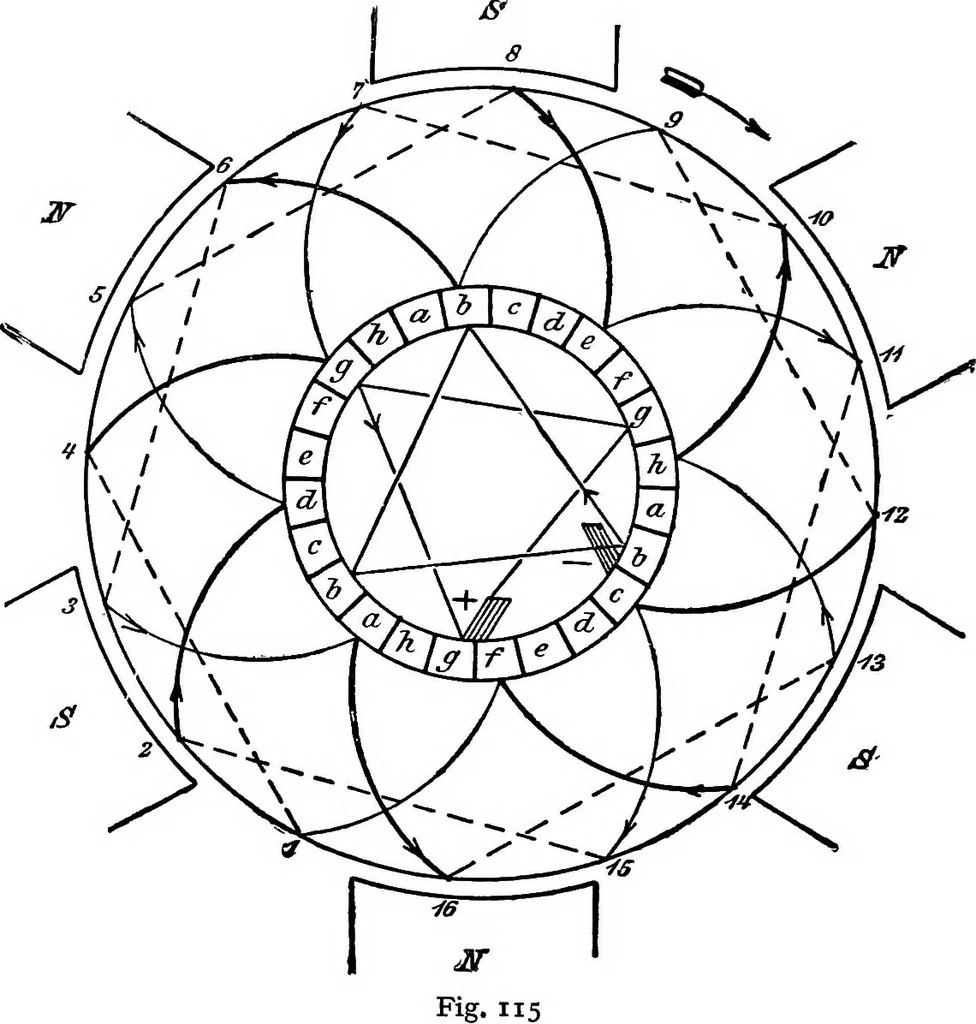

ign will be connected together, the coils 3—6 and 2—13, lying more or less in the neutral zone, will be short-circuited at the moment T. E. 9 130 Electrical Engineenng represented in the figure. The path of the current through the armaturewill then be as follows: + 9 12 I 4 7 1014 II 8 5 As in the… … of coils. Those segments which are separated by ^v- degrees are then inter-connected. In Fig. 115, for example, C7 = 16 and p = 3, whence 16 + 2 The winding proceeds as follows: i^—^4—7—10, etc. Of the connectionswithin the commutator, only those are shown which are of importance atthe moment. The…
