Thomälen, Adolf, 1865-, Thomälen Adolf. Kurzes Lehrbuch der Electrotechnik. English · London, E. Arnold · leaf 374

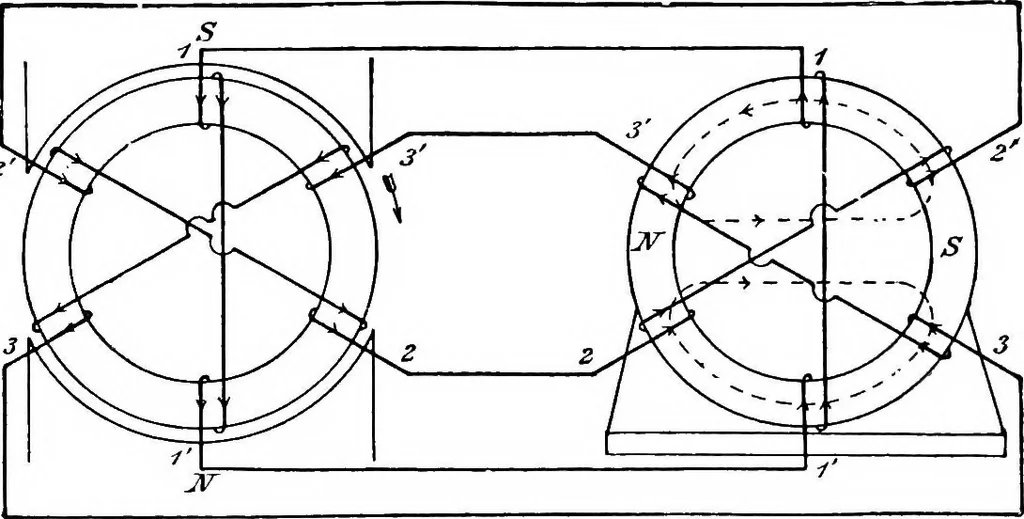

le, each winding commences by passing inwardly across thefront end of the ring. These windings are connected by means of slip-ringswith the corresponding terminals of the stator of the motor. The fact thatthe generator has been numbered clockwise and the motor in the oppositedirection is… … QetijeratoT Motor Fig. 364 phase will have its maximum value. The instantaneous value of the currentin the other phases will be A A i = i.sin 30° = 0-5 i. By tracing out the current in the various coils of the stator, it is seenthat the coil-sides 3, i and 2 carry current in the same direction, and…
Electrical engineering
