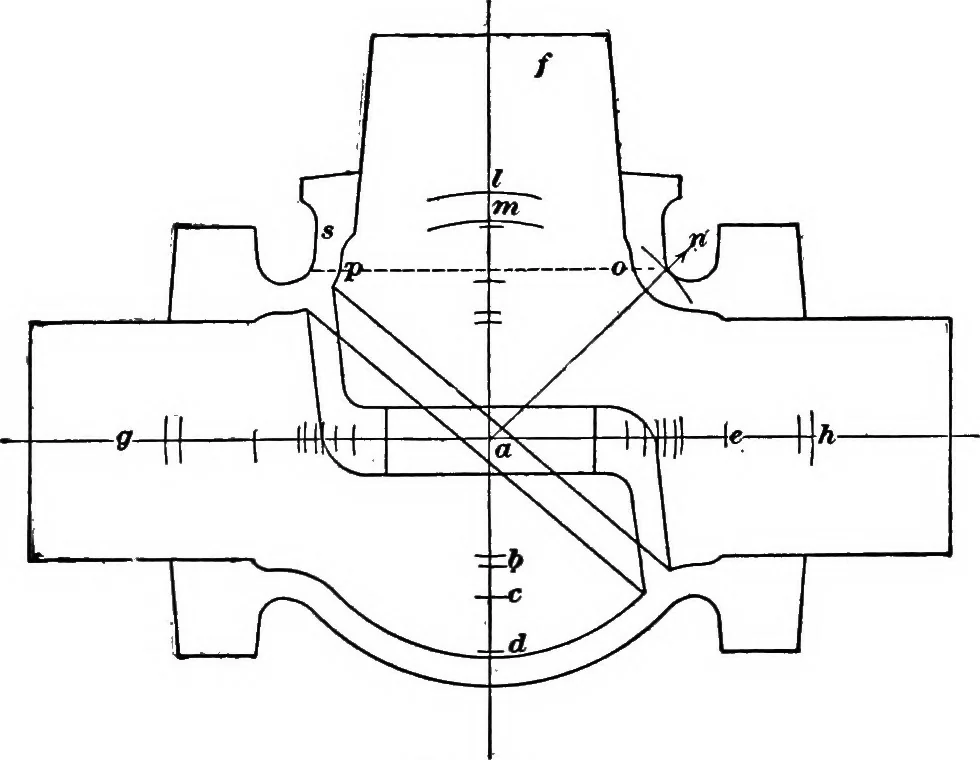

tre of neck at each end. Also the centres of squares,and the hub end, should be exactly at right angles to thiscentre line, and central with the globe. A good way to accomplish this is to make the drawingas I have shown in Fig. 122. The sizes or dimensions areall measured on the two central lines I… … Fig. 122. line of every part; and any part that should be ahke atboth ends of the body, as the squares, will be so, and willalso be equally distant from the centre of ball. Now thepatterimiaker should be able to make a pattern fit a draw- 26o PATTERNMAKING. ing like this. If you will also mark the…
