A text-book of electrical engineering; (1920)
Thomälen, Adolf, 1865-, Thomälen Adolf. Kurzes Lehrbuch der Electrotechnik. English · London, E. Arnold · leaf 456

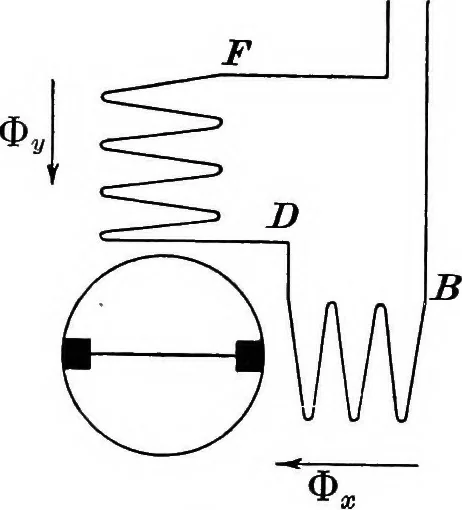

nceof any direct connection between the armature and the source of supply,the current being induced in the short-circuited armature by that in a partof the stator winding, the two being thus mutually compensated. The re-pulsion motor may be regarded as being obtained from Fig. 437 by makingthe… … Fig. 440 ® § § 0 ®00©® Fig. 441 winding DB. As a matter of fact the two are combined in a single distri-buted winding, the axis of which makes an angle with the axis of the rotorwinding as shown in Fig. 432. Even in this case, however, the part DF andthe part DB may be regarded as the exciting and…Electrical engineering
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
