Reeve, Sidney A. (Sidney Armor), 1866-1941 · New York, London, The Macmillan Company · leaf 164

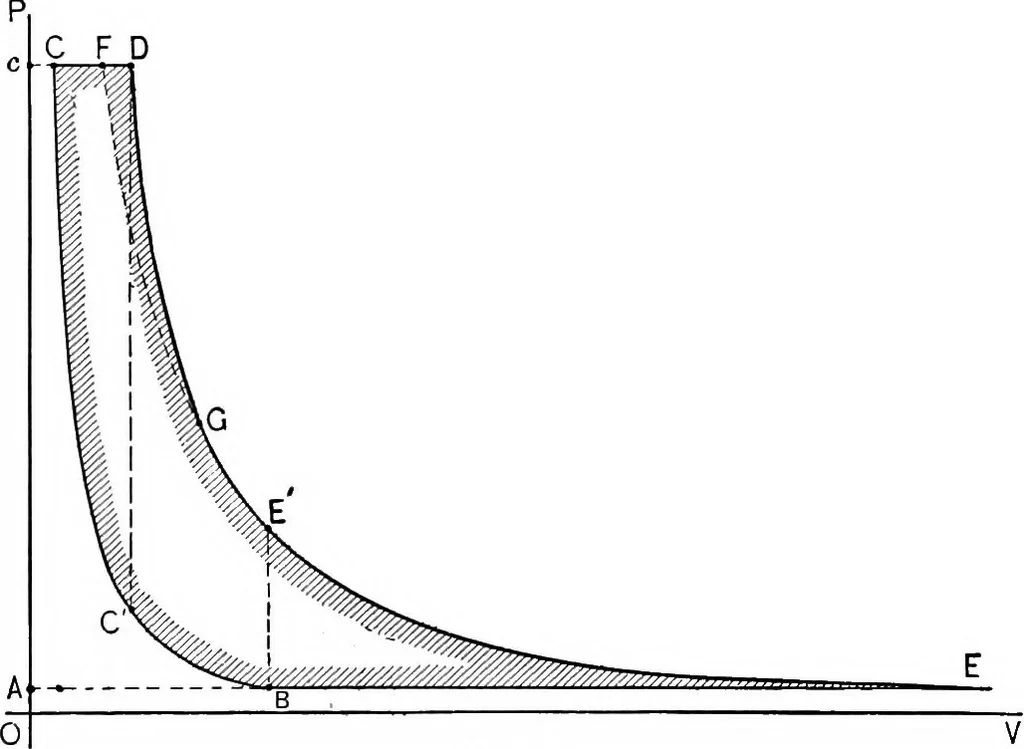

s THE GAS-ENGINE CYCLES 147 as the volume AB. Calculating the values for the severalpoints as before, it appears that Vc = 0.1011, Tc = 1323,Vji = 0.3995, TD = 5095, ND = 0.02438, TE = 2002, andVE = 3.844. As in the case of the Otto cycle, the curvesCD and BE of Fig. 24 have the same equation and… … Fig. 25 Although it is obvious from these figures that the effi-ciency of the Joule cycle is much superior to either theLenoir or the Otto under the conditions chosen, it is notequally clear that it would be under any conditions. Thediagrams are not drawn to the same scale nor, even if so,could any…
Thermodynamics · Heat-engines
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
