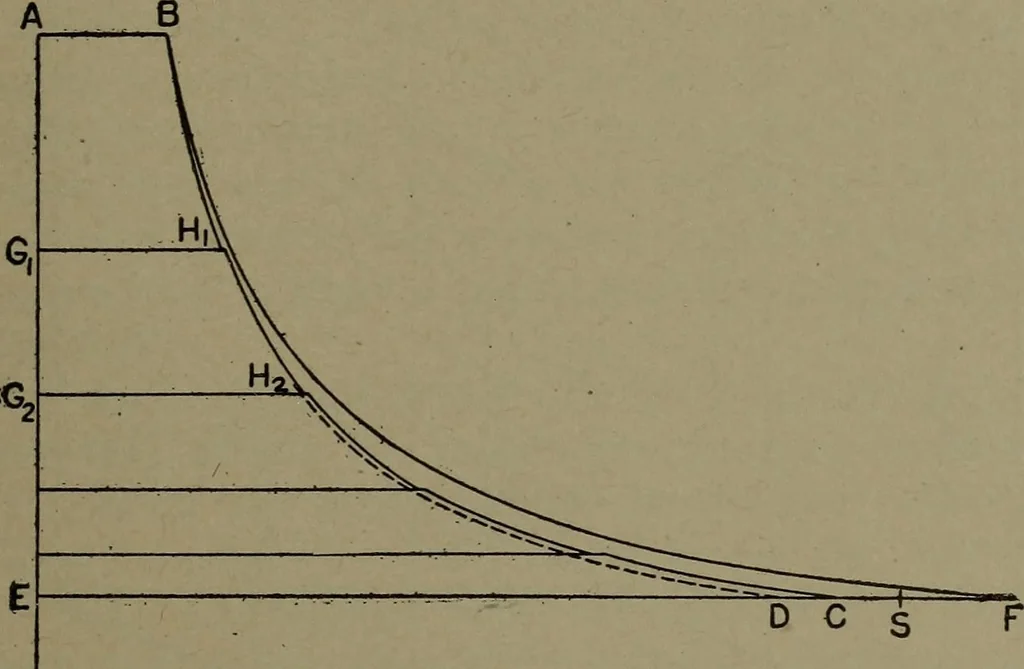

e of the steam, at the con-dition in which it leaves the nozzles. This volume is shown by the re-spective lengths GiHi, G2H2, etc., in Fig. 349; where the stepped curveBC corresponds with the outline BiCiB2***C4 in Fig. 347, and BDwith the plain adiabatic BiC. For equal stages, areas… … o1 « —— V Fig. 349. — Pressure-volume Diagram for a Multistage Turbine. and steam velocity of the stages are increased, the cross area requiredfor steam flow will be relatively less. The successive enlargements oflotor diameter in a reaction turbine like Fig. 25 are in accord with thisprinciple.…
