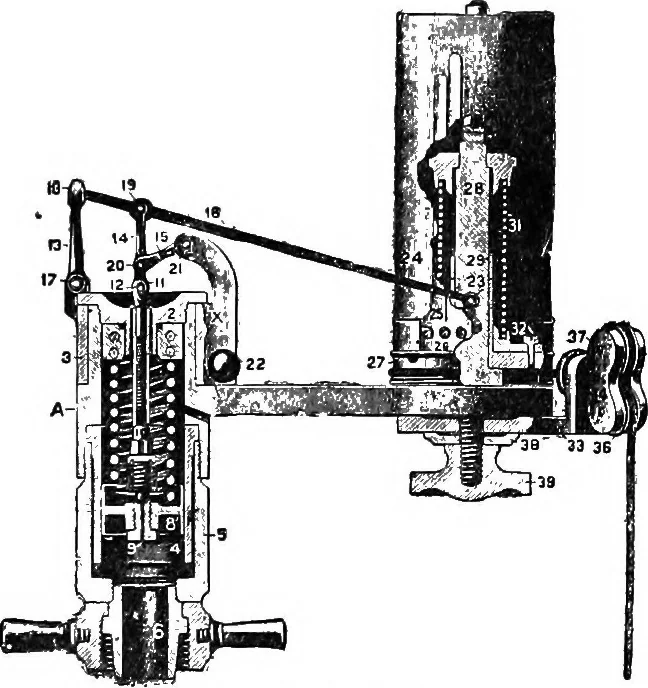

ved that the barrel of theindicator is bored out to two diameters, the larger part INDICATOES FOE GAS ENGINES. 1]5 having an area equal to twice that of the smaller. Twopistons are supplied, to either of which the same springmay be fitted. In this way a spring marked 100 wil]register 1001b. per… … Fia. 75. —Crosby Indicator. 1 in. vertical movement of the pencil corresponds to 200 lb.pressure per square inch. With this instrument a varietyof pressures may be dealt with by a small assortment ofsprings, a feature which readily recommends itself to theeconomist. In both designs the working…
