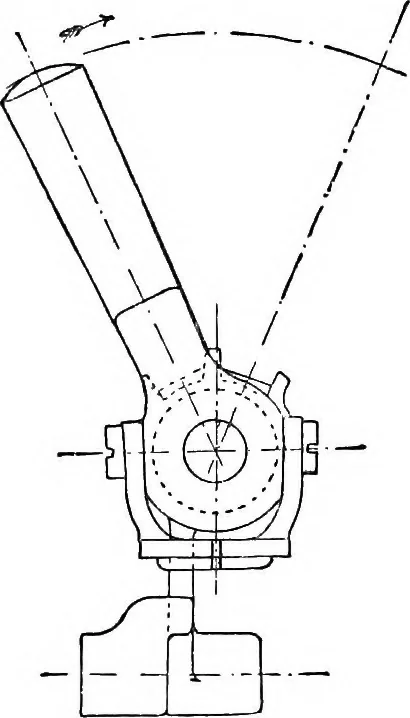

me lifting the distance piece D until it is in the dotted 128 grovers indicator gear. position, fig. 84. Now allow the hook H to return until itpressea against the distance piece D. It will now be foundthat the distance piece and the hook remain in line, but thehook is tilted upwards because the… … Pia. 86.—End view of parts A, i3, and 0 of Grovers Indicator Gear. drops down by its own weight, and when next the hock Hreturns there is a quarter of an inch clearance between itand the face of the tube. The hook therefore remains coupledto the link until the diagram is taken. To uncouple the gear…
