A practical treatise on modern gas and oil engines (1902)
Grover, Frederick · Manchester, The Technical Publishing Co., Limited; [etc., etc.] · leaf 28

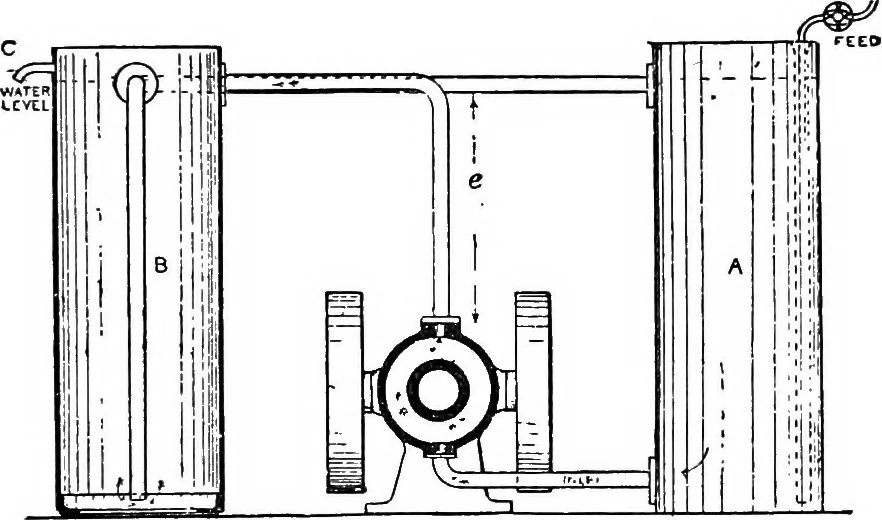

well to mention, that when anengine is subject to frost, and is not running continuously,it is a wise precaution to have two valves fitted to the inletjacket pipe, the one near the tank A to shut off the supplyfrom A; the other at the bend of the pipe as it enters thejacket, and communicating with… … Fio. 2,—Arrangement of water tanks, so as to allow a sufficient time for cooling. The form oftanks is usually cylindrical, though need not be. It is,however, necessary that the effective height should be fromtwo and a half to three times the diameter or breadth,otherwise a good circulation will not…
Internal combustion engines
