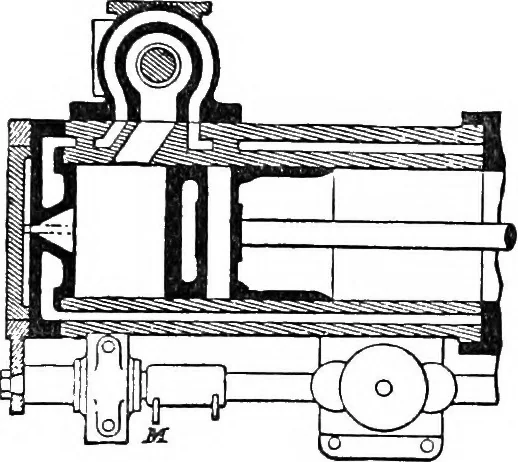

om whichit runs down the pipe F to the supply valves shown in detailin fig. 131. These valves act in the following way : A spiralspring R forces a double seated valve P towards the end VSpirit, therefore, passes through the open valve and remainsbeneath the plunger E. A cam shown at M, fig. 132,… … Fn- 132.—Sectional plan of Spiel engine, the spirit valve P, and compressing the spiral spring K. Thedown stroke is prolonged until the spirit is discharged by theplunger E against a cone-shaped disc in the chamber X. The
