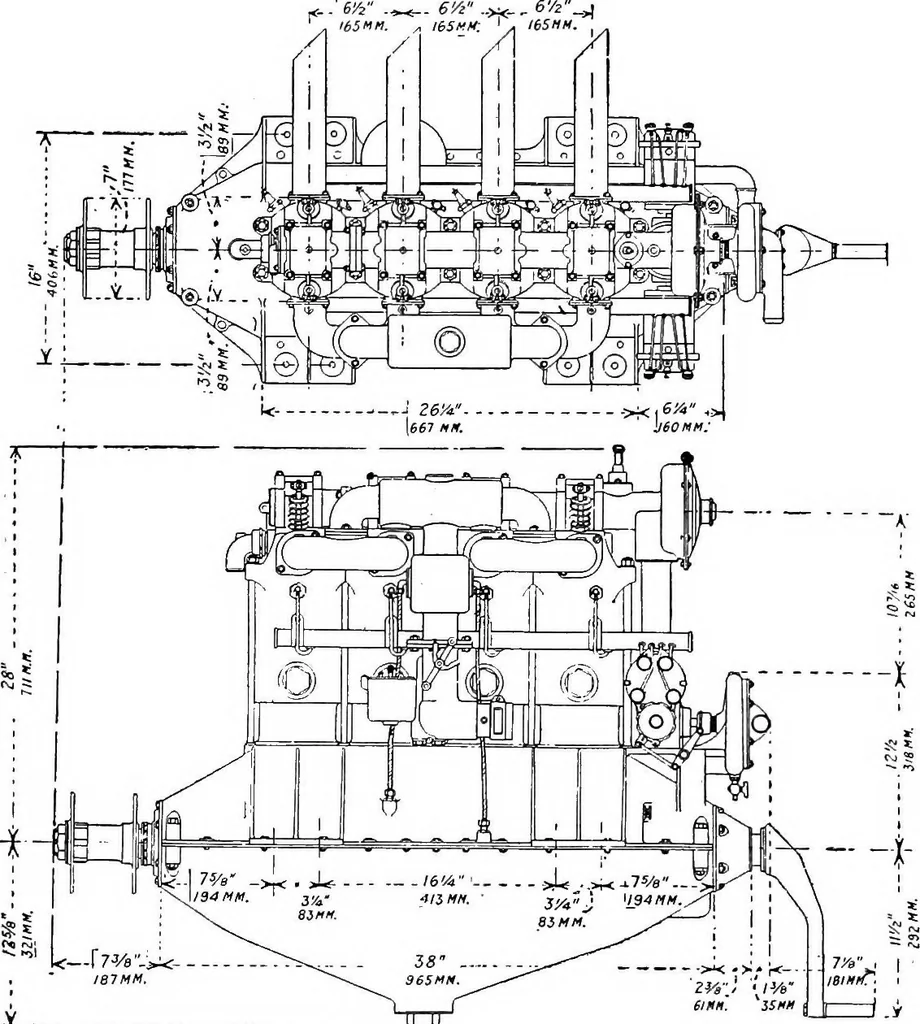

-- g3S/T7/T7 -»H **< i > I 5 Y 332 Aviation Engines be possible to standardize the longitudinal positions ofthe holding down bolts as the engine designer would stillbe able to allow himself considerable space fore-and-aftof the bolts. HALL-SCOTT ENGINE INSTALLATION The very thorough manner in… … I87MM. Fig. 149.—Plan and Side Elevation of Hall-Scott A-7 Four-Cylinder Air-plane Engine, with Installation Dimensions. Engine Installation 333 our inch measurements with the metric equivalents atFigs. 148 and 149, the former showing a vertical eleva-tion while the latter has a plan view and side…
