A practical treatise on modern gas and oil engines (1902)
Grover, Frederick · Manchester, The Technical Publishing Co., Limited; [etc., etc.] · leaf 339

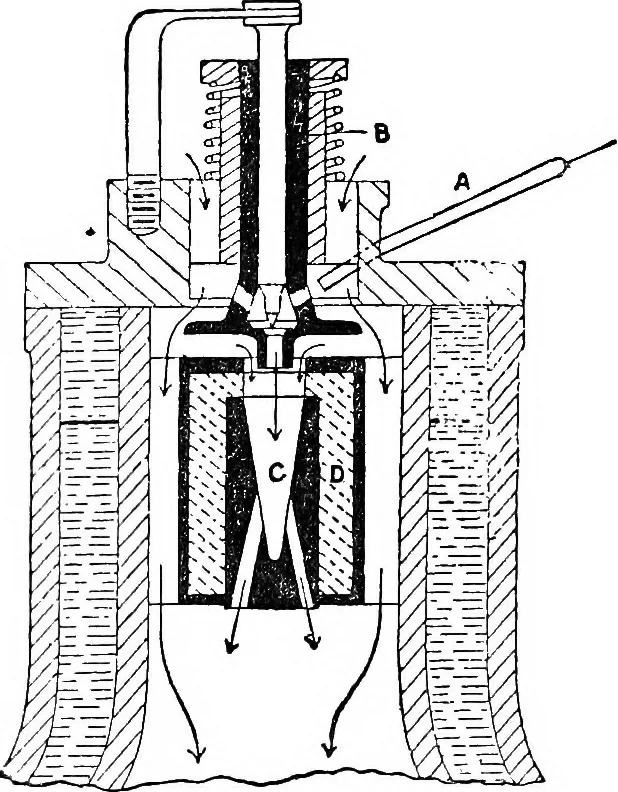

. Tolch andCo., of London, and its distinguishing features are showuin figs. 161 and 162. Fig. 161 shows the upper end of thevertical combustion, chamber. On the outstroke of thepiston air enters the automatic valve shown at B. Thegreater volume of air passes into the cylinder round theoutside of… … Fio. 161.«-Se(!t:on through VapTiser and Comhustion Chamber of Tolohand Co.«Capitaine Engine. Oil enters by the pipe A, and, passing through the hole inthe air valve B, drops into C, and is vaporised. The centralspindle within the valve B closes the oil passage to C, whenthe valve is in its…
Internal combustion engines
