Electrical problems for engineering students (1902)
Hooper, William Leslie, 1855-1918, Wells, Roy Titus, 1873- joint author · Boston and London, Ginn & Company · leaf 71

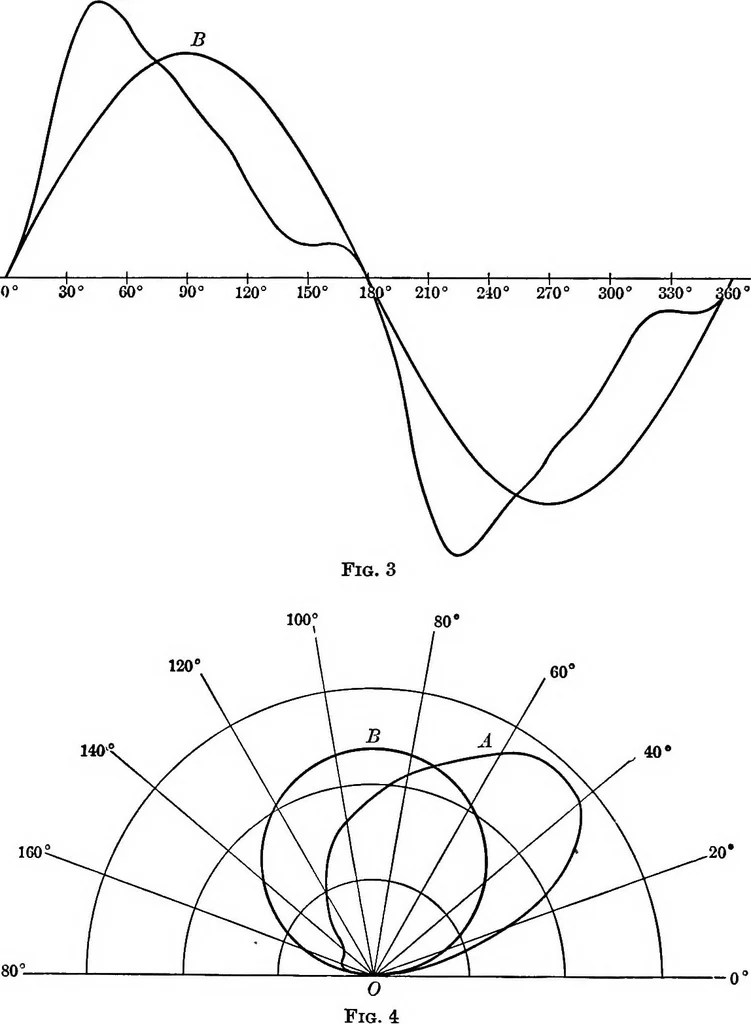

about a point, laying off at definite intervalsthe value of the ordinate of the wave diagram ^t an angularadvance from the beginning of the cycle equal to the anglethrough which the vector has rotated. If, as is usually thecase, the positive and negative half waves are equivalent, onlyhalf a cycle… … curve and construct a circle JB of equal area, tangent to thehorizontal axis at the origin. This circle is the polar diagram ELECTEO-MOTIVE FOECES AND CUEEENTS 63 of the sine curve having the same Vmean^ value of the equi-distant ordinates as the original curve. Hence the diameter ofthis circle is…
Electricity
