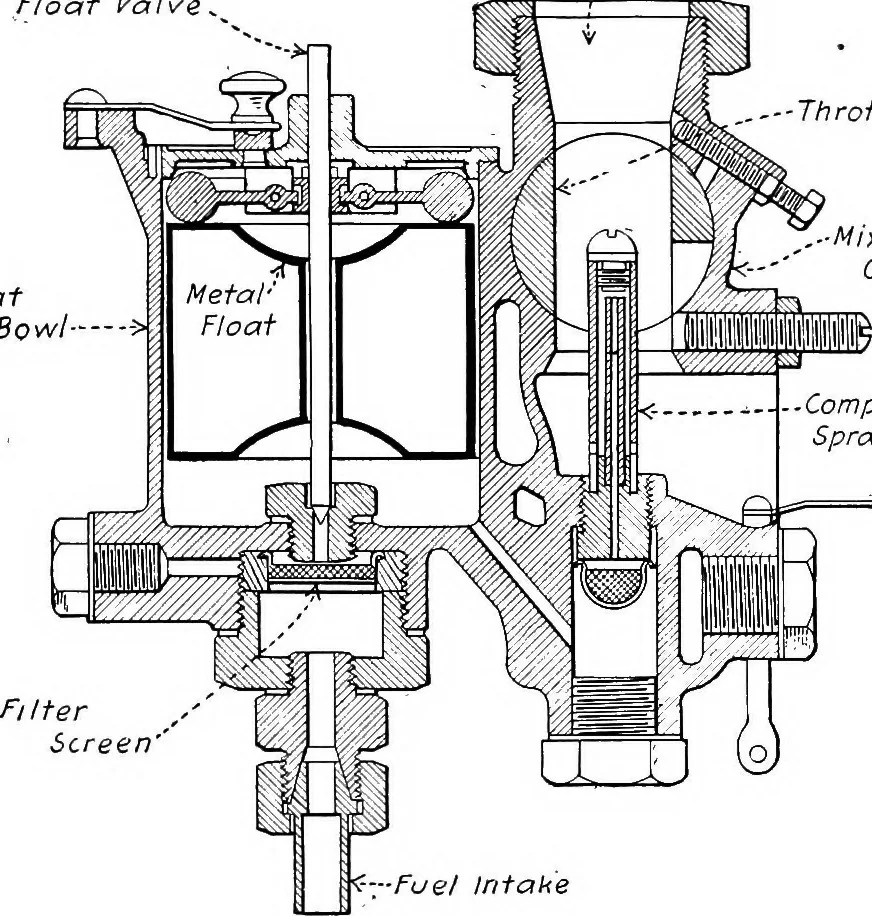

Claudel Carburetor 127 primary air enters beneath the jet passage and there isa small throttle in the intake to increase the speed of airflow for starting purposes. The carburetor is adapted forthe use of a hot-air connection to the stove around theexhaust pipe and it is recommended that such a… … -MixingChamber. ■ CompoundSpray Nozzle Fuel Intake Fig. 46.—The Claudel Carburetor through the primary air intake is so arranged that ifdesired it can be connected with a linkage on the dashor control column by means of a flexible wire. THE CLAUDEL (FRENCH) CARBURETOR This carburetor is of…
