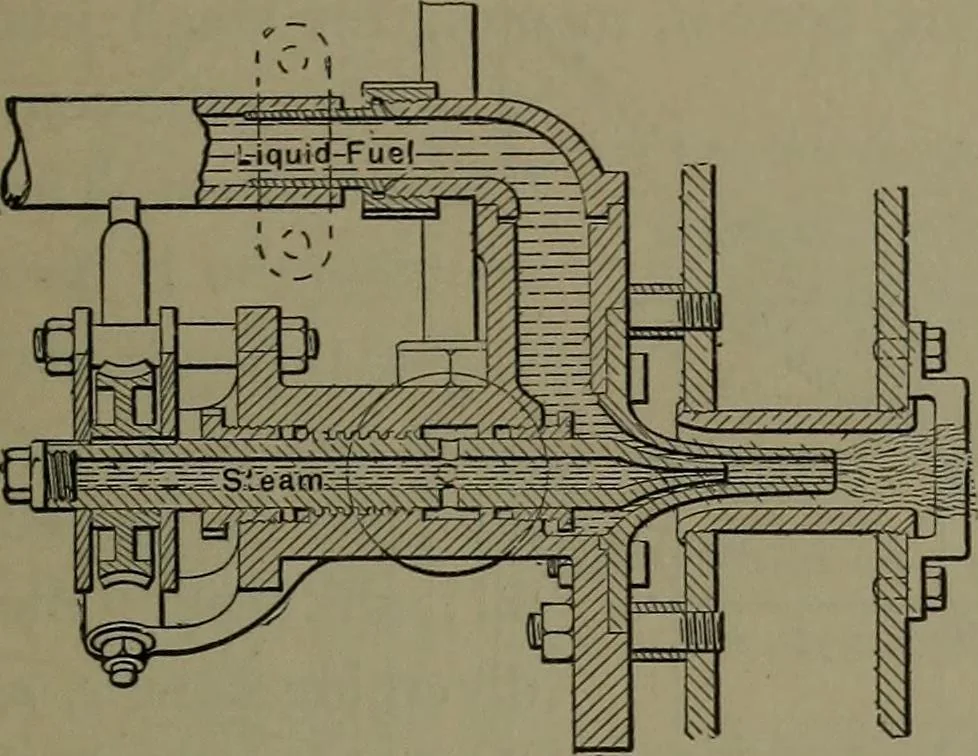

The steam, oil, and air chambers are very wide and spread a broad flame. Nos. 108, 109, no. III, show the burner in detail. GENERATION OF POWER, STEAM. 63 112. LIQUID FUEL BURNER. Urquhart Locomotive type. The air nozzles are fixed, steamnozzle is movable by a screw andworm gear and regulates the… … 113. OIL FUEL FURNACE, for heating and setting tires. Thecombined oil and air enter the hood through a pecuharly shaped expansion nozzle, which effec-tually combines them and spreadsthem outward at the same time.The air pipe connects with achamber D, which has a cockfor draining off water. A…
