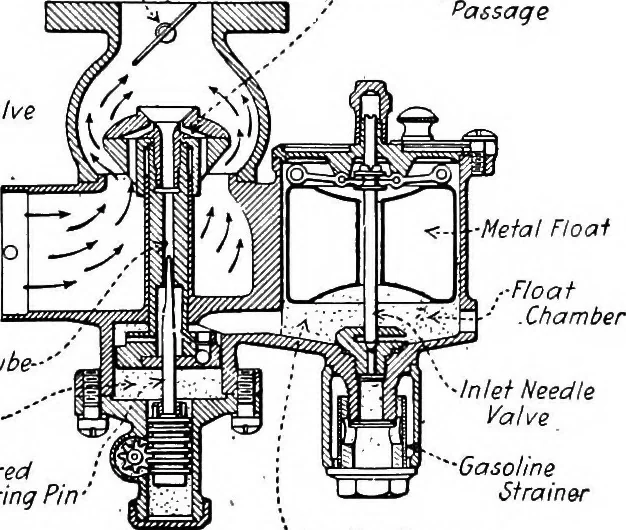

Throttle, Mtxing.Chamber /Automatic ^Metering Valve AutomaticMetering Valve -Air Chamber Gasoline Aspirant Tube-- Dash Pot- TaperedMetering Pin Primary Air Passage ■TaperedMeteringPin … ^tn/et Need/e Valve •GasolineStrainer Gasoline Passage Tig. 47.—The Stewart Metering Pin Carburetor. 130 Aviation Engines speeds, the other being placed in a larger air tube andhaving a slightly augmented bore so that it is employedon intermediate speeds. At high speeds both jets wouldbe used in…
