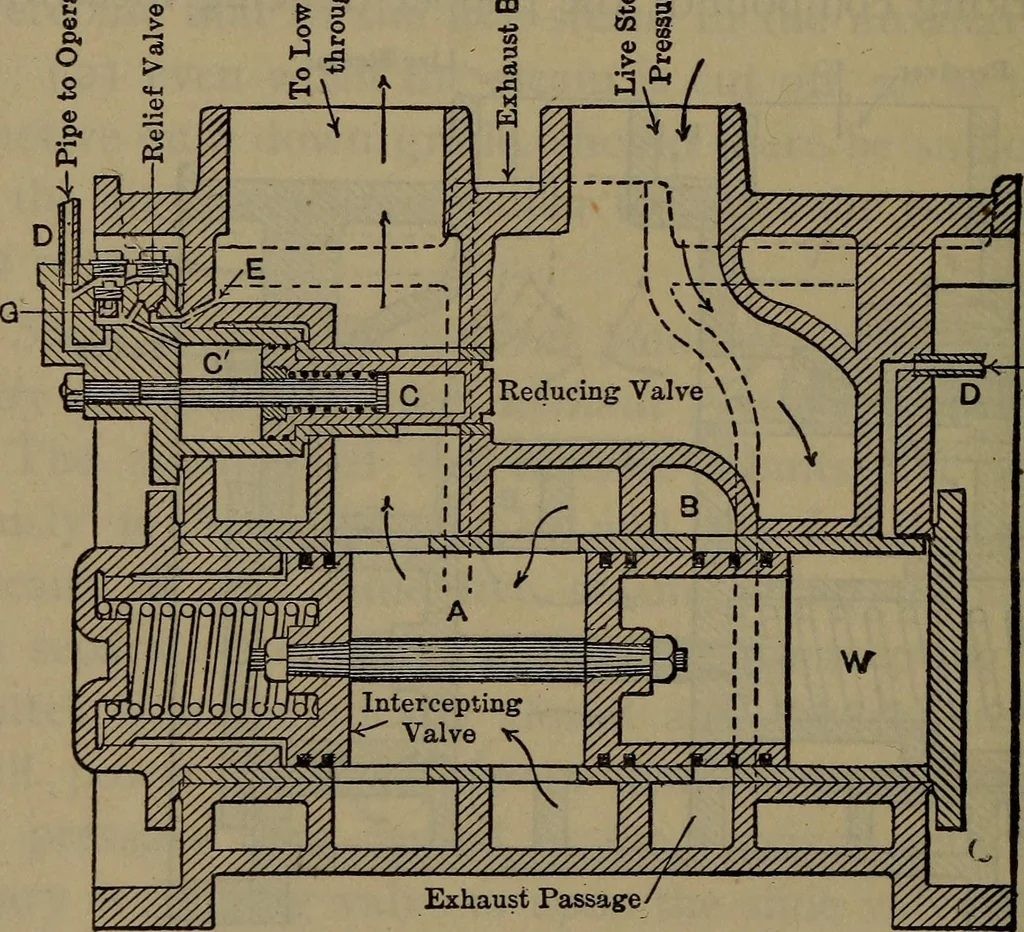

he live and ex-haust steam courses for compound running being shown byarrows. 532 LOCOMOTIVE CATECHISM. Q. Describe the later or intermediate von Borries inter-cepterf A. As shown in Fig. 343, it is in the side of the smoke-boxand joined at A to the live steam pipe. Live steam passesinto C,… … Pipe to OperatingValve in. Cab Fig. 341. Intercepting Valve in Compound Position. also acts through F against the piston E; but because of thegreater area of the main valve V, when the H. P. cylinderexhausts into A the pressure balances that in the receiver,and as E has more area than the shoulder…
