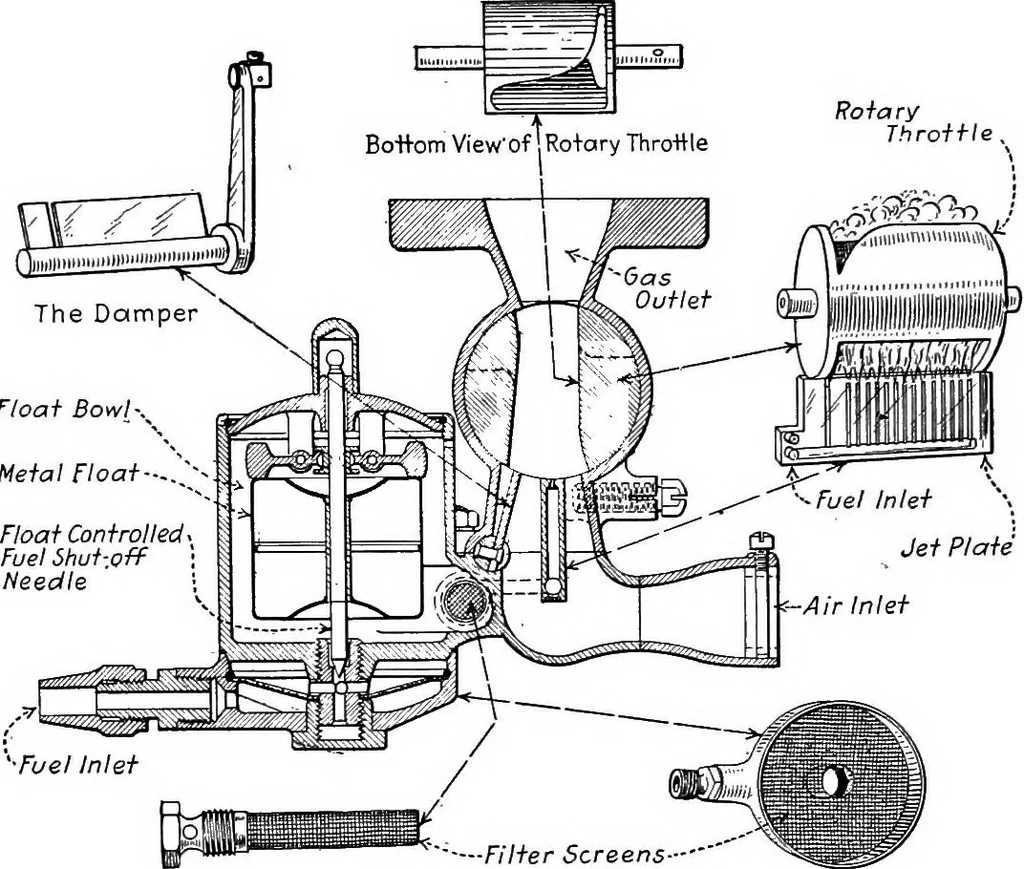

ow. The tops of these jets are closed until thethrottle is opened far enough to pass them, which it doesprogressively. The air opening is at the bottom, and thethrottle opening is such that a modified venturi is formed. 134 Aviation Engines The throttle is carried in a cylindrical barrel with the… … •Fuel Inlet a&jfBSJSj -—Filter Screens **^&*£^ Tube Screen Detachable Trap Fig. 50.—Sectional View of Master Carburetor Showing Parts. off the air, throwing the suction on the jets, thus givinga rich mixture. The only adjustment is for idling, and once that isfixed it need never be touched.…
