Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 392

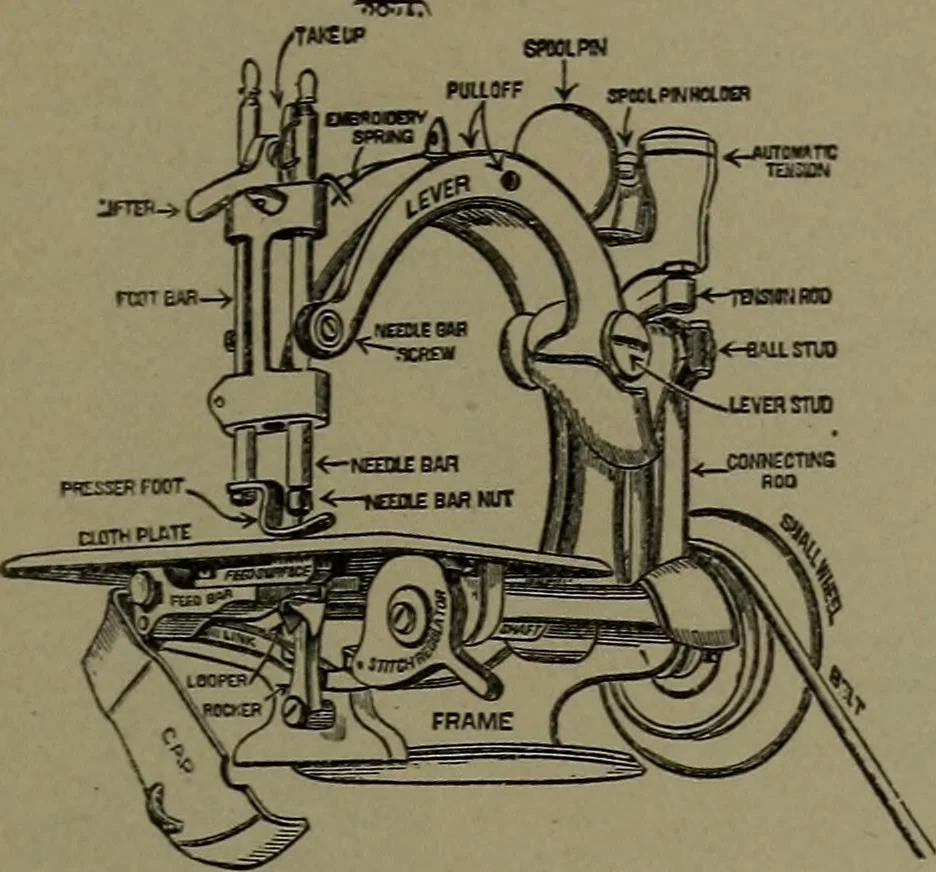

1576. HOOK OF THE WHEELER& WILSON SEWING-MACHINE.—Thehook is rotated by the shaft, catches theneedle loop, and carries the thread around adisc bobbin. MISCELLANEOUS DEVICES. 381 … 1577. SEWING-MACHINE, Wilcox & Gibbs model, show-ing the designation of parts. 1578. SPRING MOTOR, for sewing-machine. A strong coiled spring and a geartrain, like a clocktrain on a larger scale,geared to the drivingshaft. The pedal ischanged and arrang-ed as a friction stopand speed regulator.…
Mechanical movements
