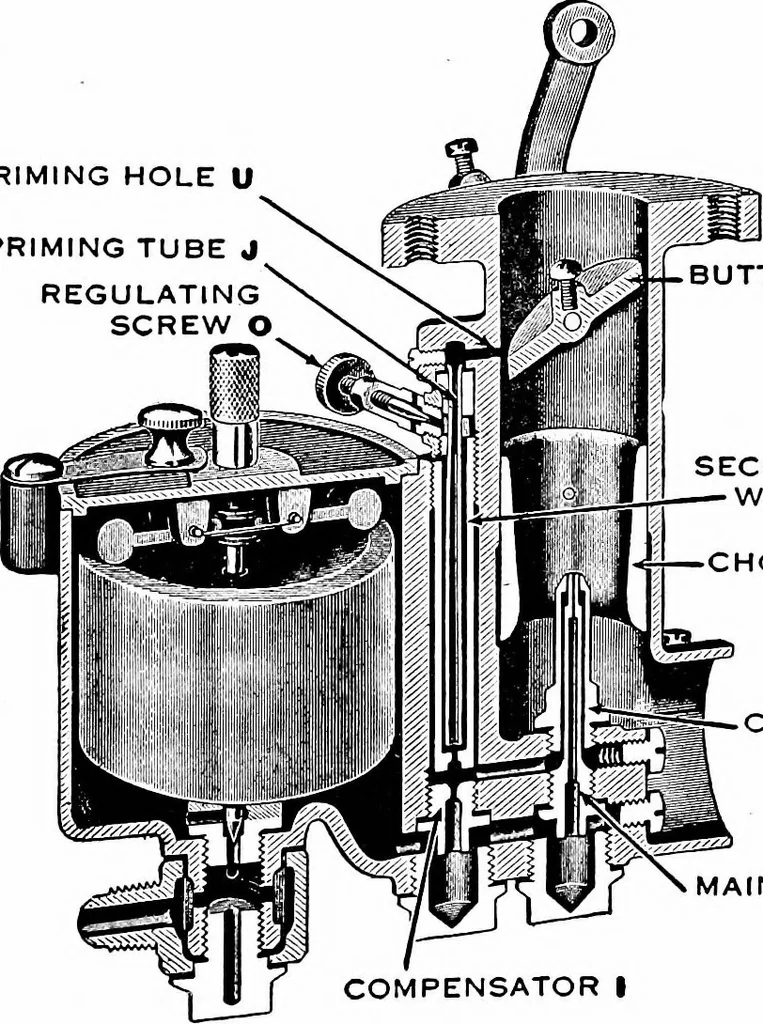

own at Fig. 51, has becomevery popular for airplane engine use because of its sim-plicity, as mixture compensation is secured by a compen-sating compound nozzle principle that works very well inpractice. To illustrate this principle briefly, let us con-sider the elementary type of carburetor or… … .BUTTERFLY T SECONDARY■WELL P -CHOKE X -CAP JET H MAIN JET C COMPENSATOR I Fig. 51.—Sectional View of Zenith Compound Nozzle Compensating Carburetor. 136 Aviation Engines
