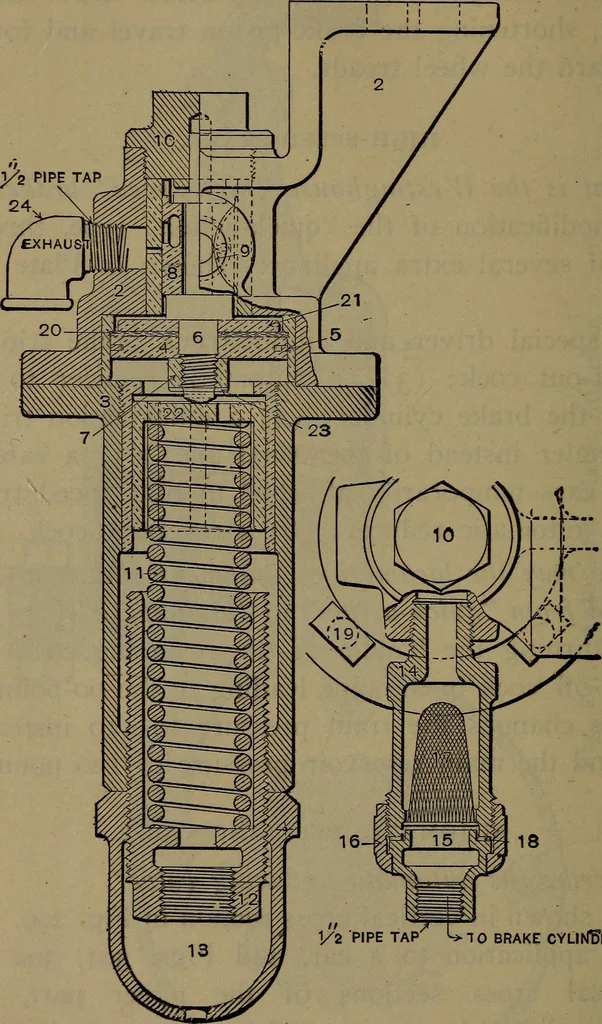

ical cross sections of the upper part, showingthe various slide-valve positions for release, service stop, andemergency stop respectively. The triangular port b leads tothe chamber d; port a to the atmosphere, through the exhaustopening Y, Fig. 299. Referring to the release position. Fig.301, the… … 3 1/2 PIPE TAP ^10 BRAKE CYLlNHfeS Fig. 299. Automatic Reducing Valve, can overcome the tension of spring 11 and force down pis-ton 4. In heavy service application, when brake-cylinder pressure HIGH-SPEED BRAKE. 449
