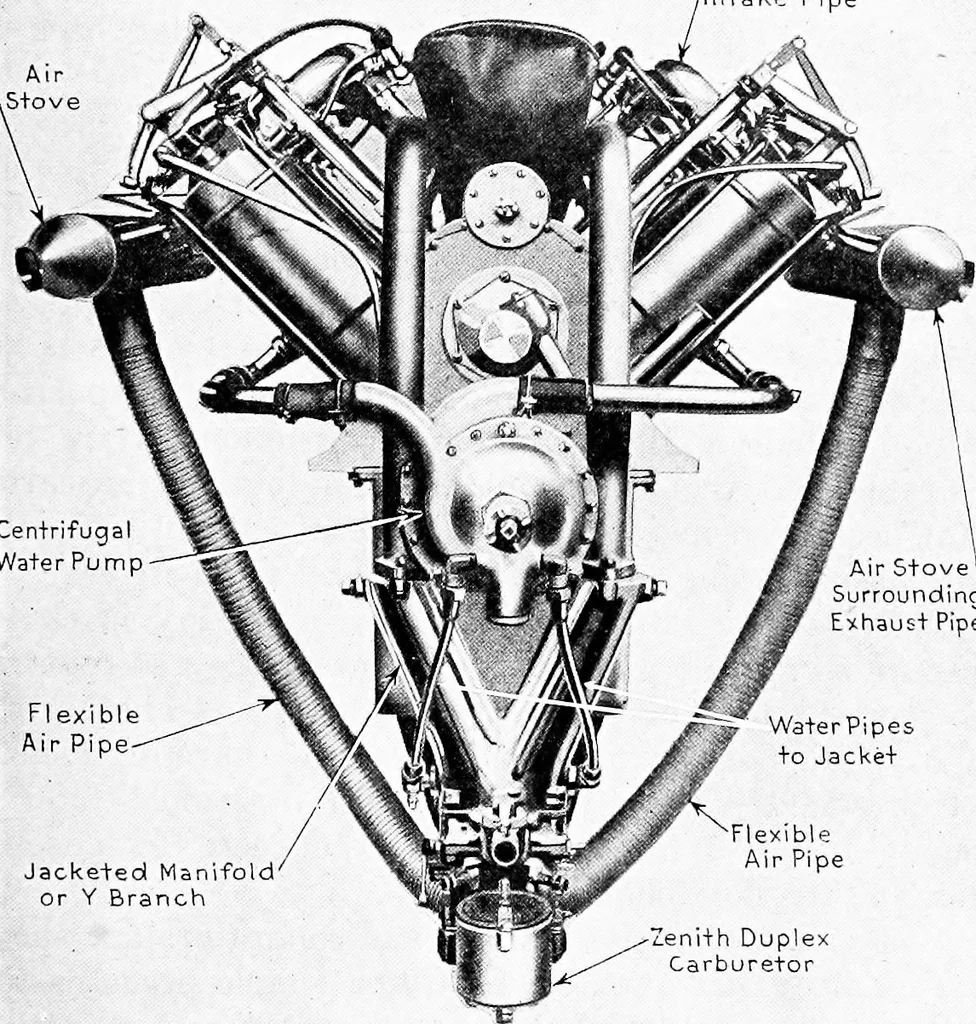

ntresults due to the strong cross suction in the inlet mani-fold from one set of cylinders to the other. This natur-ally led to the adoption of two carburetors in which eachset of cylinders was independently fed by a separate car- Zenith Carburetor Installation 139 buretor. Results from this system… … entrifugaWater Pump FlexibleAir Pipe Jacketed Manifoldor Y Branch Air Stove1SurroundingExhaust Pipes FlexibleAir Pipe Duplexuretor Fig. 54.—Rear View of Curtiss OX2 90 Horse-Power Airplane MotorShowing Carburetor Location and Hot Air Leads. this system never gained in favor. The next logical…
