Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 165

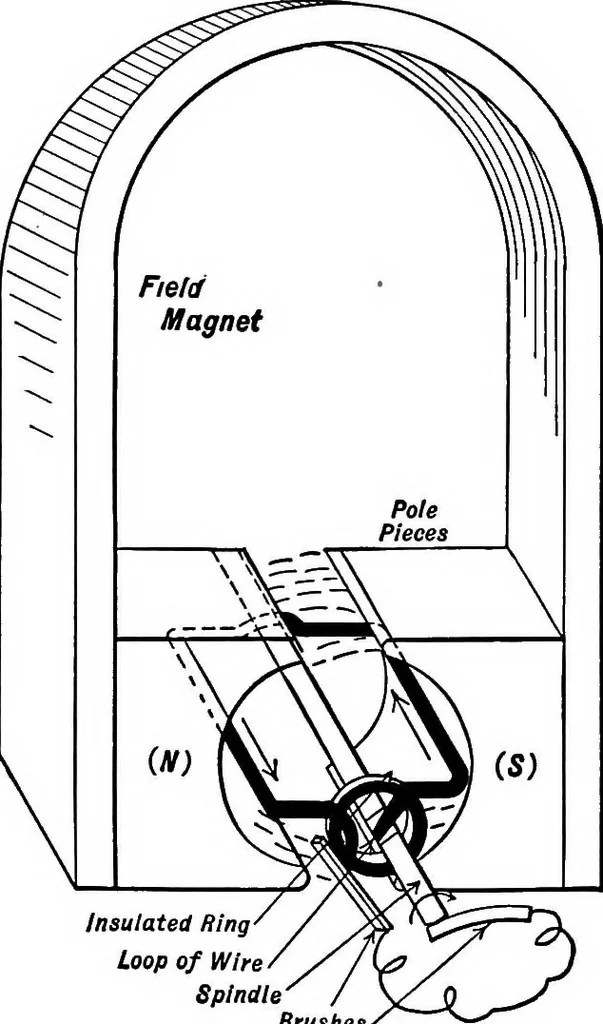

magnetic field to cut the lines of magnetic influ-ence present between the pole pieces. Both of the endsof this loop are connected, one with the insulated drumshown upon the shaft, the other to the shaft. Two metalbrushes are employed to collect the current and cause it 164 Aviation Engines to flow… … Insulated RingLoop of WireSpindle Brushes Fig. 58.—Elementary Form of Magneto Showing Principal Parts Simplifiedto Make Method of Current Generation Clear. The pressure of the current and the amount producedvary in accordance to the rapidity with which the linesof magnetic influence are cut. The…
Airplanes
