Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 186

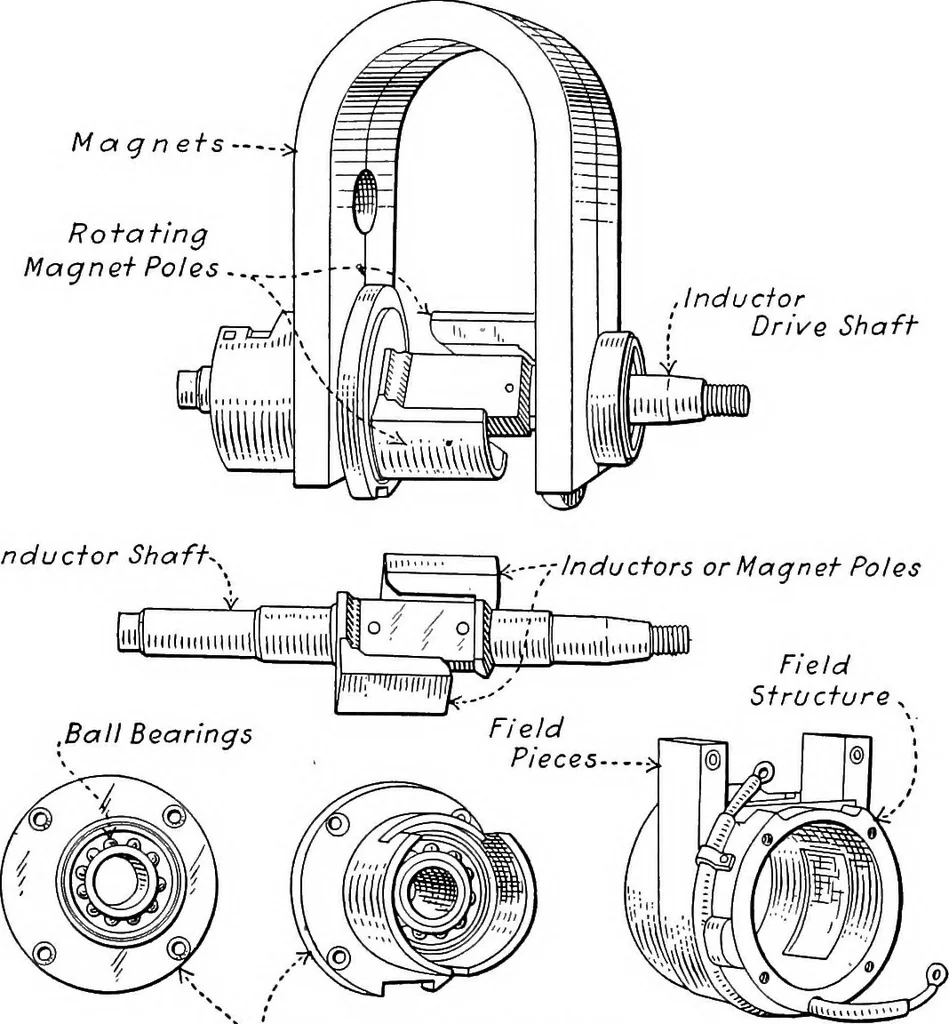

tic centerpiece. This member constitutes true rotating poles forthe magnet and rotates in a field structure, composed oftwo laminated field pieces, riveted between two non-magnetic rings. The bearings for the rotating poles are Dixie Ignition Magneto 185 mounted in steel plates, which lie against… … B iiiilHiiHiinn .Ball Bearings KEnd Plates and Bearings The rotating element of the. Dixie magneto. Inthe Dixiethere are norevolving windings.there is no moving wireand the parts of the magneto are reduced to a minimum. A.G. HftSSTROM H.Y. Fig. 68.—The Rotating Elements of the Dixie Magneto. to the…
Airplanes
