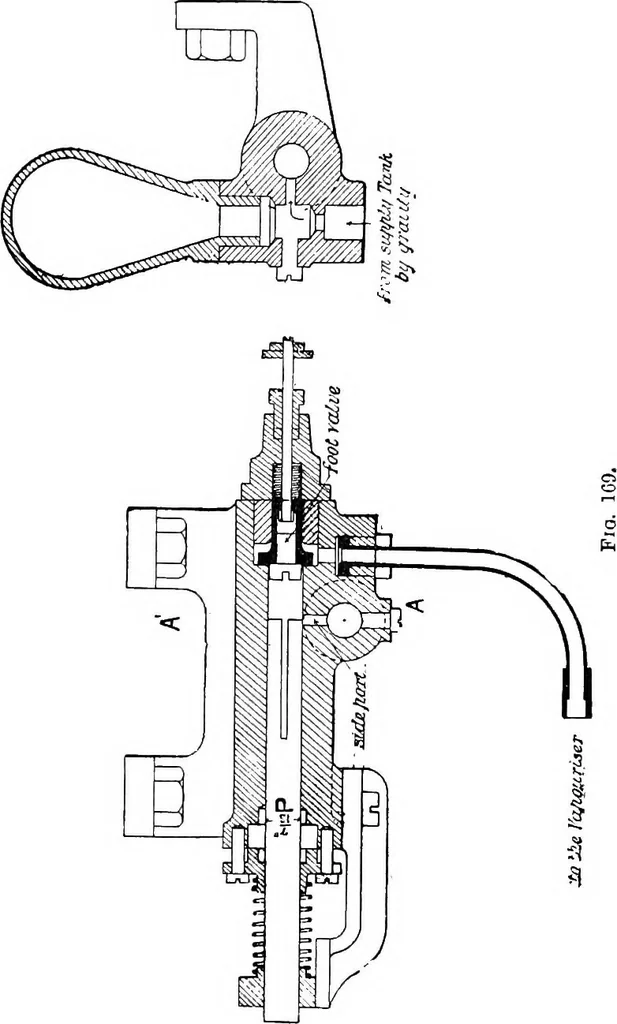

336 THE GAEDNEE OIL ENGINE. oil enters the barrel of the pnmp by gravity from the supplytank. The oil charge is then forced past the foot valve anddelivered to an open cup on the vaporiser, whence it is … sacked into the vaporiser daring the indraft caused by thepiston. A little air enters the vaporiser with the oil, butthe greater supply is taken through the air regulator bolted THE DIESEL OIL ENGINE. 337 to the admission valve box. From the positions of the twochannels, it will be seen that when…
