Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 184

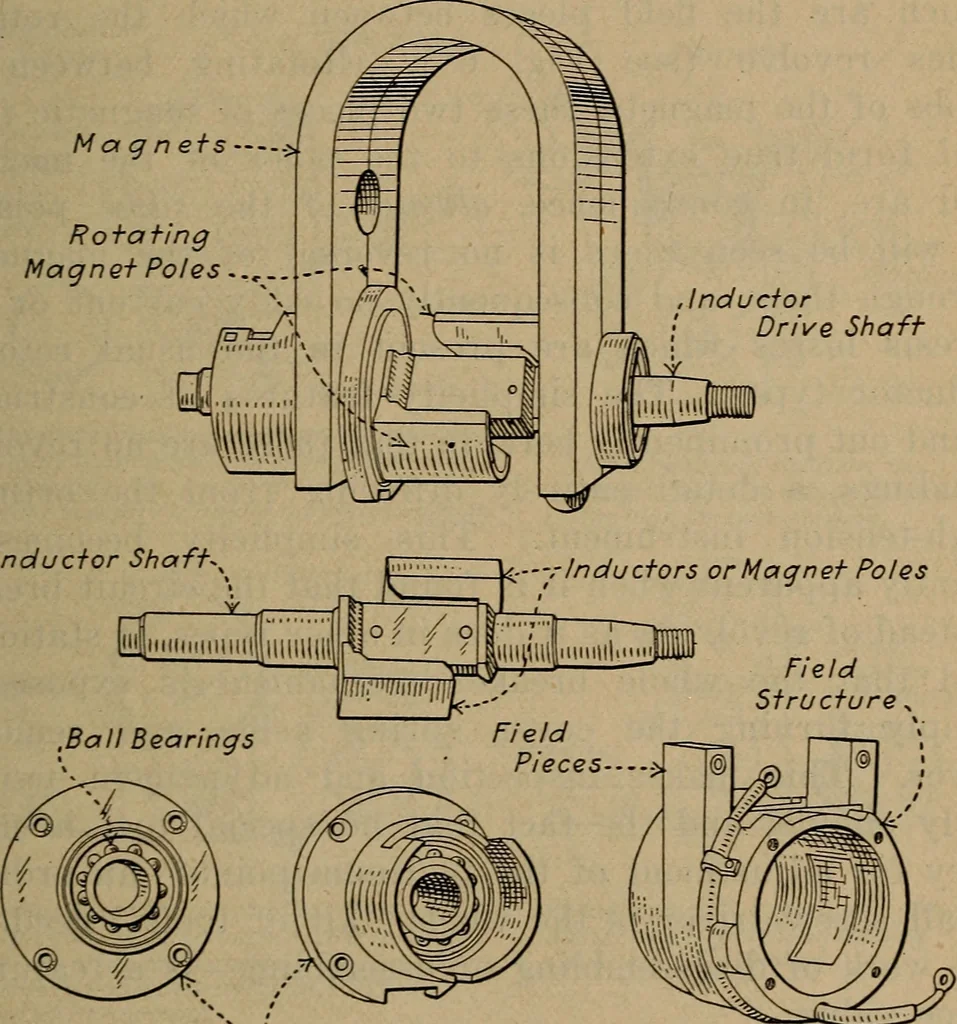

ed by a non-magnetic centerpiece. This member constitutes true rotating poles forthe magnet and rotates in a field structure, composed oftwo laminated field pieces, riveted between two non-magnetic rings. The bearings for the rotating poles are Dixie Ignition Magneto 185 mounted in steel plates,… … Inductor Shaft- ^-—r Inductors or Magnet Poles ^KEnd Plates and Bearings The rotating element of the. Dixie magneto. In the Dixiethere are no revolving windings.there is no moving wireand the parts of the magneto are reduced to a minimum. A.G. HkSSTROM h.V. Fig. 68.—The Rotating Elements of the…
