Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 188

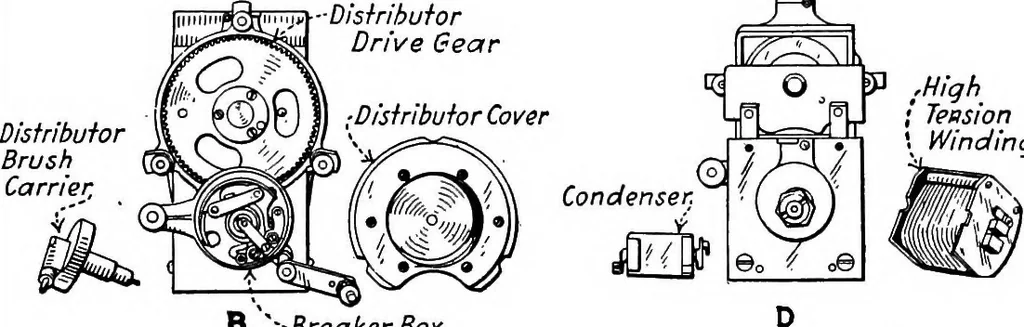

-,Box ) \ ••■Cover AThe whole breaker mechanism is exposed bysimply turning/ the cover spring aside andremoving cover. A screw driver is the only _tool necessary to adjust the platinum points. HighTensionWinding After removing the cover themagnets can be taken off-exposingthe high tension winding.… … B --Breaker Box Nothing could be simplerthan Dixie con-struction. By loosening nuts and turningclamps aside, the distributor block can beremoved and distributor disc liftedout of its housing. By taking out four screws the con-denser and high tension windingcan be readily removed. AJJ.HA6STB0M H.Y.…
