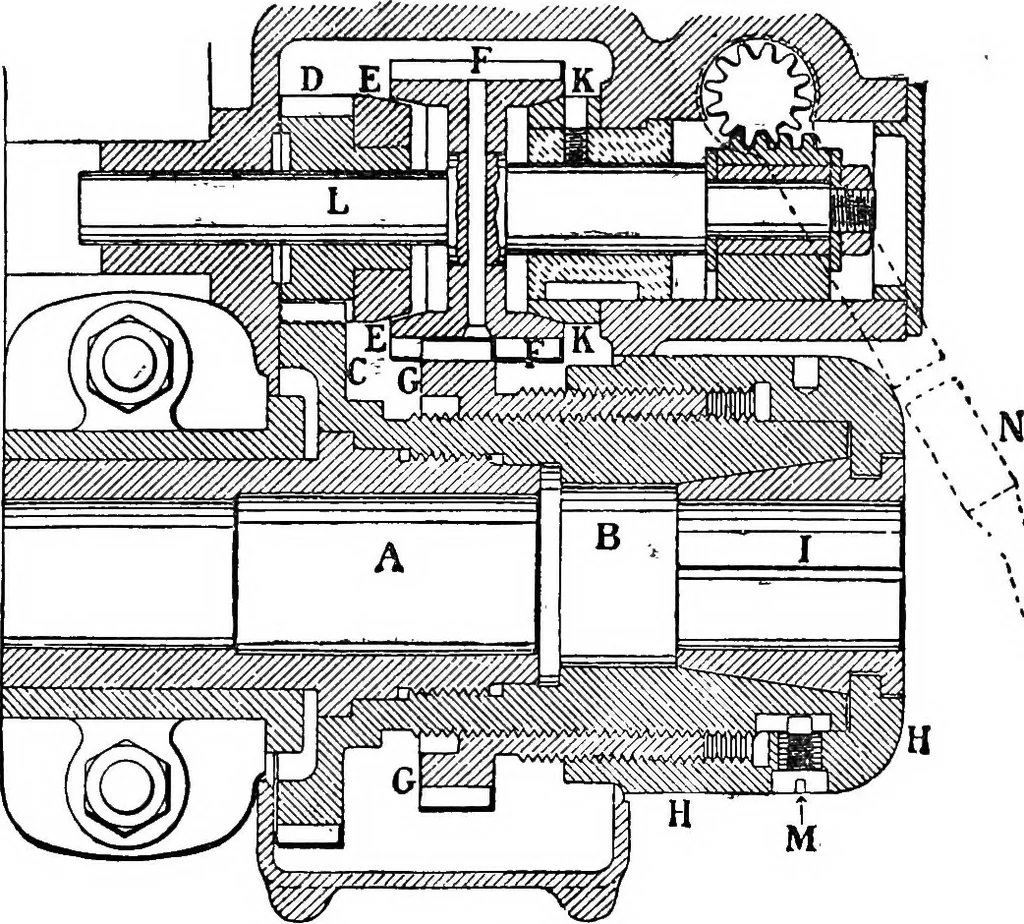

901. SIMPLE MACHINES AND MACHINE TOOLS, ETC. 87 mounted upon the spindle L in such a way that whilst it is free torotate, it is constrained to move longitudinally with L by a rack-and-pinion mechanism communicating with an exterior handle, N.The teeth of the wheel F continuously mesh with those of… … Fig. 88. pitch, and upon it is screwed the cap H, which engages with thecollet by a plain shoulder. The cap H is constrained to rotatewith B, but yet to have a longitudinal motion, by the small screwM, which passes through the cap into a slot cut in the body B. The action of the mechanism is…
