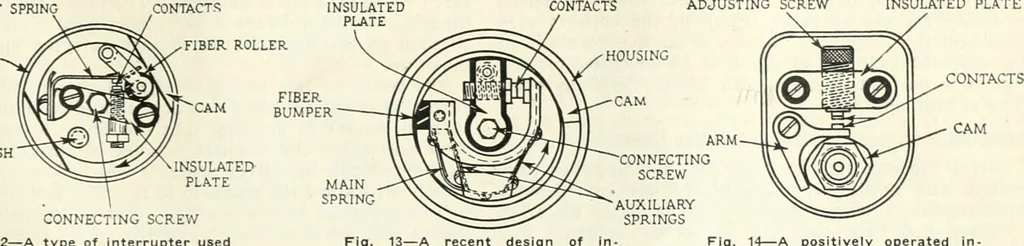

e the contacts apart. The third corner ismerely to balance the lever during its rotation. In the discussion connected with Fig. 6 it was pointedout that a rocking break was very apt to be obtained ininterrupters in which the contact was mounted directlyupon the spring, due to a strengthening out of… … CONNECTING SCREWFig. 12—A type of interrupter usedin England. Fig. 13—A recent design ofterrupter. Fig. 14—A positively operated in-terrupter. In this particular application of this general type ofinterrupter it will be noticed that the spring has a doublebend between the contact point and the…
