Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 253

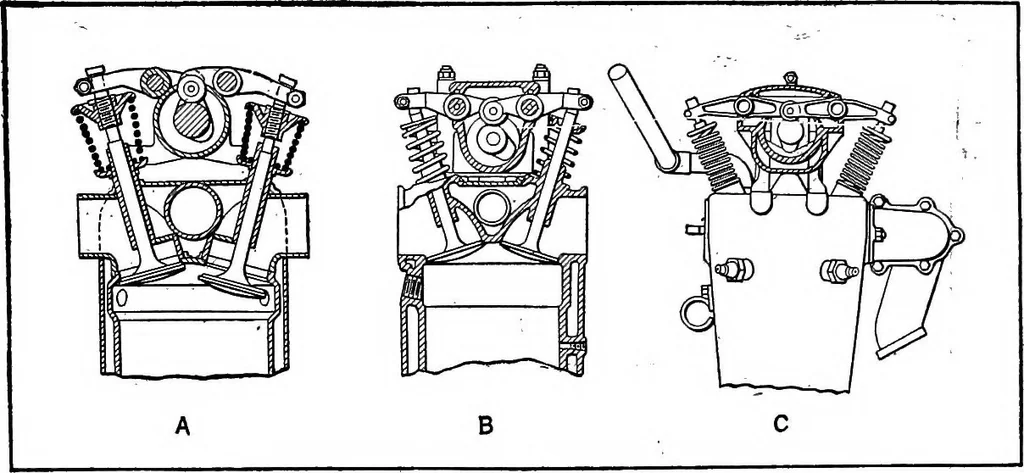

conditions apply to. the exhaust gases,- though theyare reversed. When the yalve-in-the-head type of cylin-der is employed, as at C, the only resistance olfered thegas is in the manifold. As far as the passage of thegases in and out of the cylinder is concerned, ideal condi-tions obtain. It is… … Fig. 96.—Examples of Direct Valve Actuation by Overhead Cam-Shaft.A—Mercedes. B—Hall-Scott. C—Wisconsin. rods and rocker arms instead of the simpler and directplunger which can be used with either the T or Lhead cylinders. This -is. clearly outlined in the illustra-tions at Fig. 95, where A shows…
