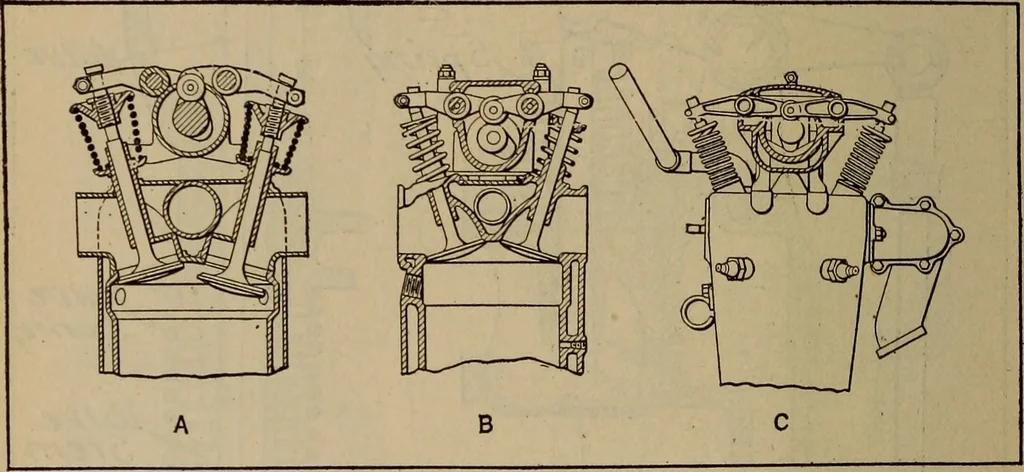

e conditions apply to the exhanst gases, though theyare reversed. When the valve-in-the-head type of cylin-der is employed, as at C, the only resistance offered thegas is in the manifold. As far as the passage of thegases in and out of the cylinder is concerned, ideal condi-tions obtain. It is… … Fig. 96.—Examples of Direct Valve Actuation by Overhead Cam-Shaft.A—Mercedes. B—Hall-Scott. C—Wisconsin. rods and rocker arms instead of the simpler and directplunger which can be used with either the T or Lhead cylinders. This is clearly outlined in the illustra-tions at Fig. 95, where A shows the…
