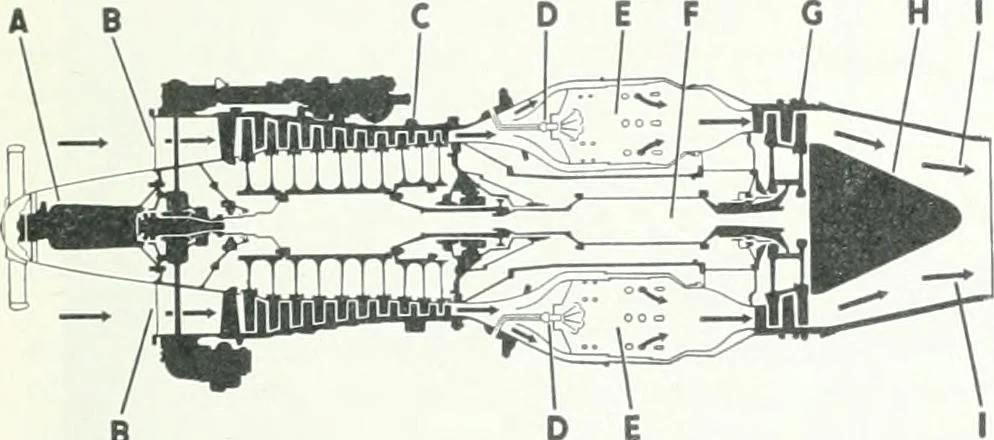

the sphere allowing air toescape at A. The pressures at C and D are still equaland opposite. The pressure at B is still pushing on thesphere, but the pressure at A is rushing out of theopening and has nothing to push on. The pressuresare now unbalanced, and the pressure at B pushes thesphere… … D E Fig. 28. Orenda Turbo Jet Engine. The starter motor is shown at A. Air enters the AirIntakes at BB, at atmospheric temperature and pres-sure. It is compressed by the ten-stage Compressor, C.It enters the Flame Tubes, EE. Fuel is admitted throughthe Burner Manifold DD, and burns with the…
