Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)

Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 266

An illustration from Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes, 1917, leaf 266

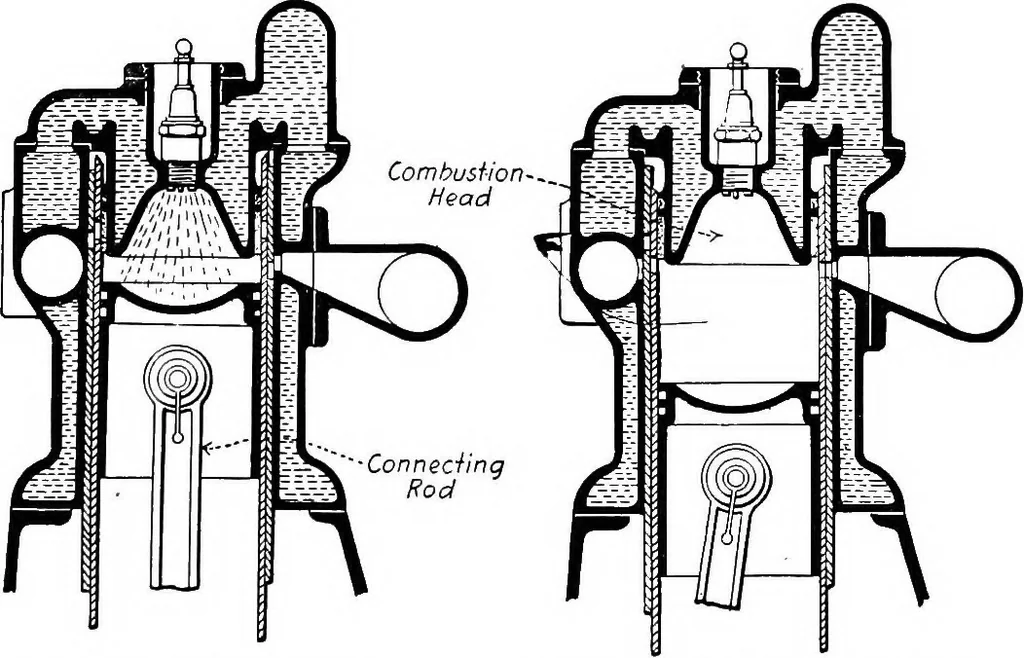

Intake Stroke-Intake Ports Open Compression Stroke-All Ports Closed … Tiring Stroke-All Ports Closed Exhaust Stroke-Exhaust Ports Open Fig. 106.—Diagrams Showing Knight Sleeve Valve Action. keep the valve from falling into the cylinder in event ofbreakage of the main spring in some cases, and to providea stronger return action in others. 266 Aviation Engines KNIGHT…
