Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)

Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 292

An illustration from Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes, 1917, leaf 292

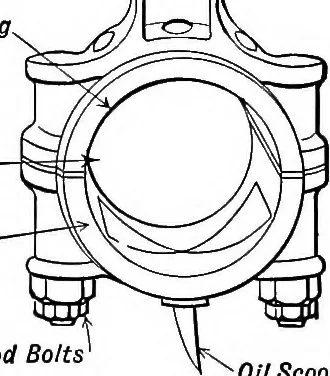

Connecting Rod- Connecting Rod Bearing. Beating LinersConnecting Rod Cap- … Connecting Rod Bolts Oil Scoop Fig. 118.—Typical Piston and Connecting Rod Assembly. vided at the top of the piston and one may consider itas two pistons in one. One of the important conditions in piston design isthe method of securing the wrist pin which is used to 292 Aviation Engines connect the…
