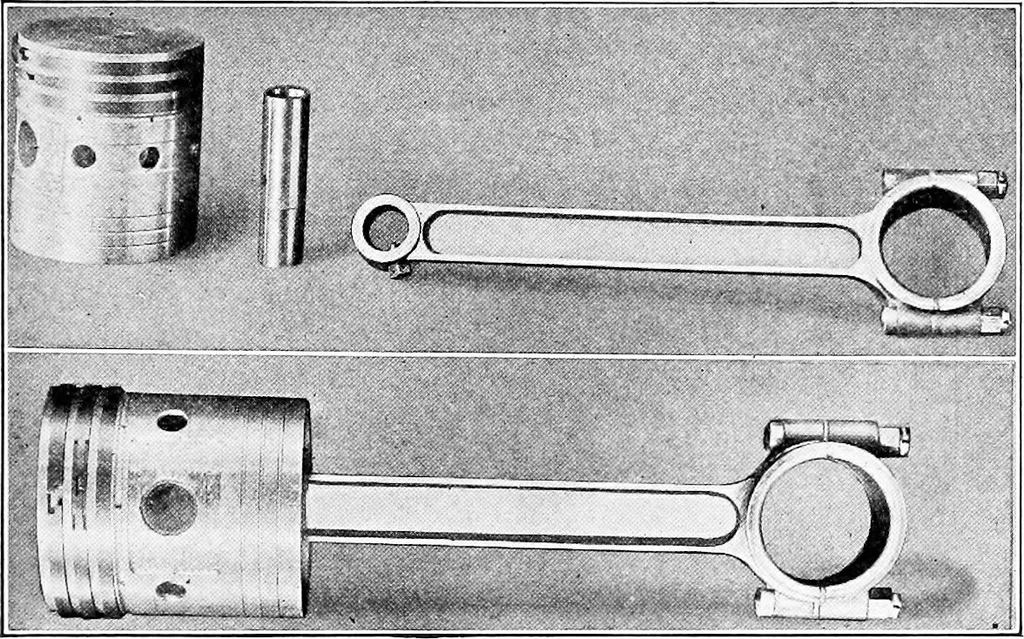

.-■■Piston Fig. 119.—Parts of Sturtevant Aviation Engine. A—Cylinder HeadShowing Valves. B—Connecting Rod. C—Piston and Rings. Constructional Details of Pistons 293 wrist pin was free to move it would work out of thebosses enough so that the end would bear against thecylinder wall. As it is usually… … Fig. 120.—Aluminum Piston and Light But Strong Steel Connecting Rodand Wrist Pin of Thomas Aviation Engine. because it would permit escape of gas. The wrist pinmember is a simple cylindrical element that fits the bossesclosely, and it may be either hollow or solid stock. Atypical piston and…
