Wright-Martin Aircraft Corporation, New Brunswick, N.J · New Brunswick, N.J., Wright-Martin Aircraft Corporation · leaf 34

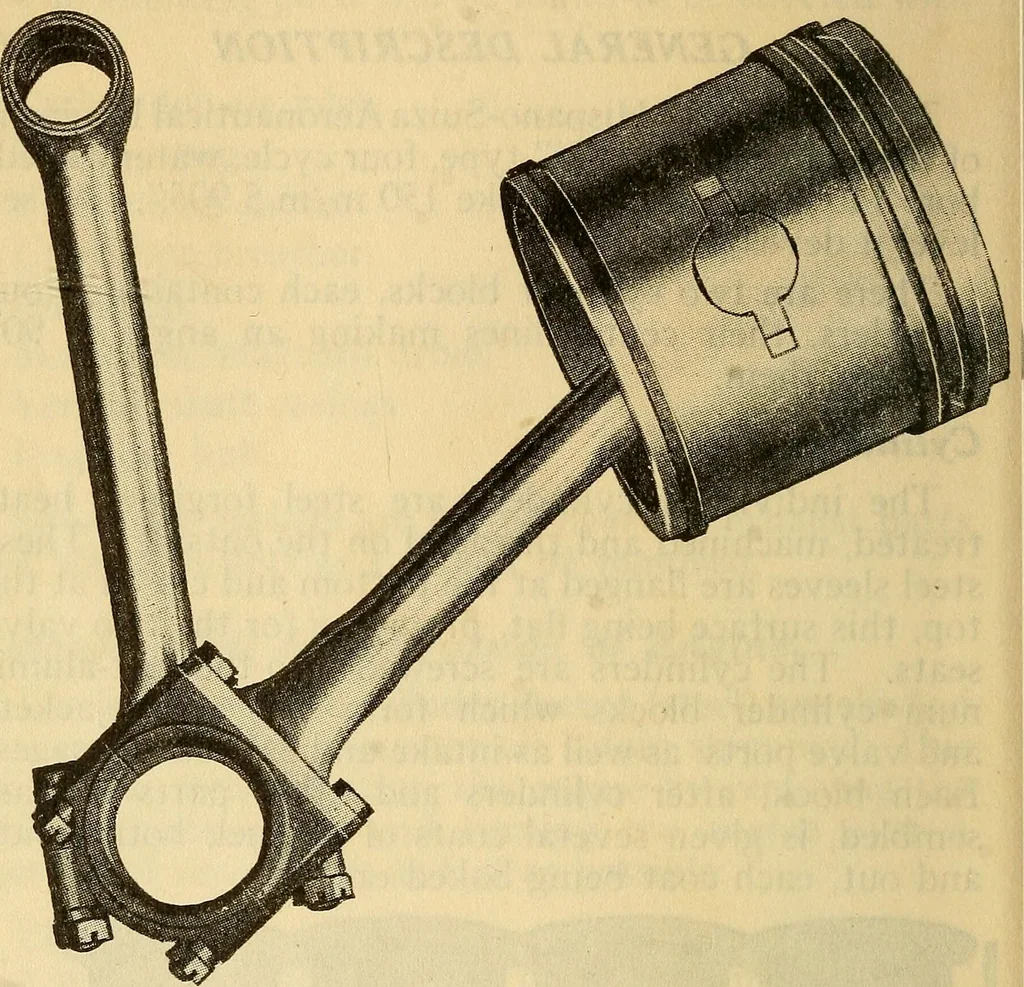

Plate 1Cylinder, steel sleeve, vertical shaft and camshaft assembly 31 HISPANO — SU Z A … Plate 2Piston and connecting rods assembled. Pistons. The pistons are aluminum castings, one-half of aninch in thickness at the head. The sides taper downfrom one-half of an inch at the top to three-sixteenths ofan inch in thickness at the bottom. By this constructionthe heat is rapidly carried…
Airplanes
