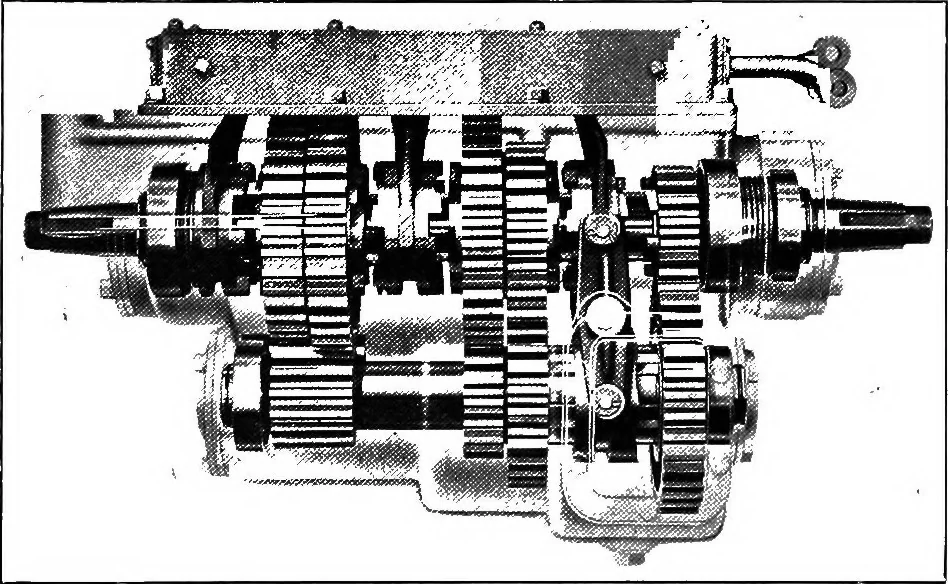

F/ xg Fig. 19—Transmission Assembly, Sliding Gear Type except F and G are in mesh. It is to be noted that gearsF and G are always in mesh as they transmit the powerfrom shaft A to shaft C. Shaft D is the reverse gear shaft which carries thethird gear necessary to cause the shaft B to rotate in… … Fig. 20—Sliding, Jaw Clutch Transmission the front bearing of shaft B being supported on bearingE located in the rear end of shaft A. The sliding jaw clutch type of transmission operates onthe same general principle as the sliding gear type exceptthat the gears are in constant mesh, the speed ratid…
